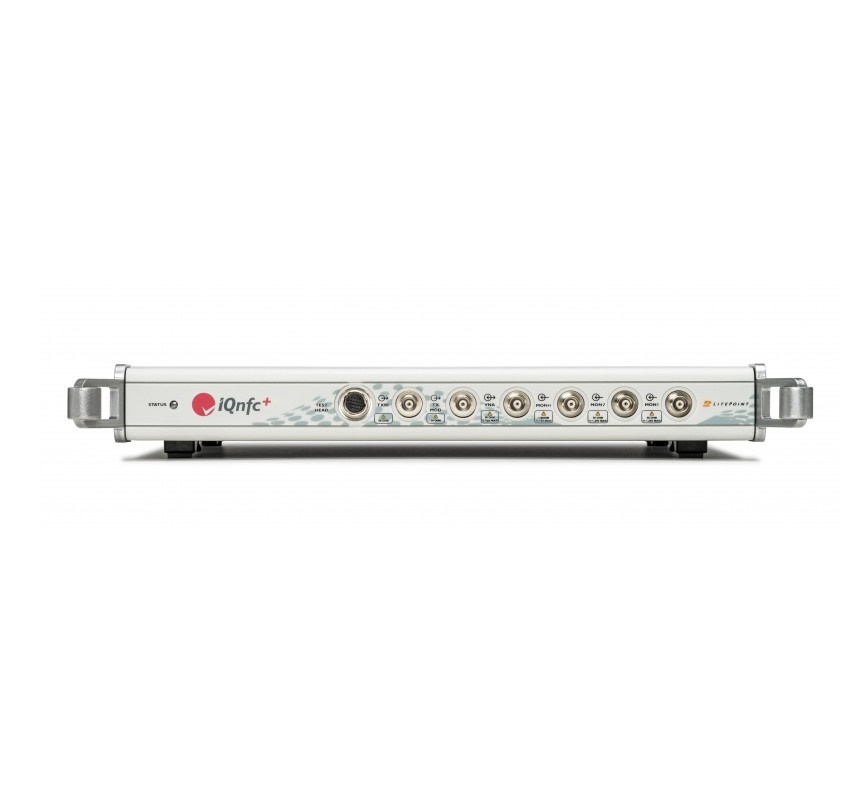

Litepoint IQnfc+ NFC Physical Layer Test System


Datasheet


Brochure


IQnfc+® is a physical layer test system optimized to characterize NFC devices in DVT and manufacturing phases. It supports all test cases as defined in EVCo and NFC Forum.

LitePoint provides turn-key software that facilitates test coil calibration, executes test plan and provides detailed waveform analysis and flexible APIs to customize test flow in the labs.


Comprehensive Test Coverage

Functional test checks basic NFC functionalities through the use of standard protocols

Functional verification on all key NFC standards through reduced signaling

RF parametric test monitors physical layer quality of DUT

Supports all EMVco and NFC Forum standard coils

Includes software for standard defined test cases and limits

Supports all main NFC standards and emulation of initiator and target modes including ISO 14443A/B, ISO 18092, EMVCo, FeliCa, NFC A/B/F/P2P

Fast & Simple Testing for the Lab & Manufacturing

Intuitive GUI streamlines analysis

Automated test solution minimizes test software development time and accelerates time to market

Compact and rugged design makes it easy to deploy into manufacturing lines

Lightweight and portable tester ideal to be transported to various locations to debug issues

Optional positioning fixture ensures repeatable measurements and easy DUT positioning

NFC Technology Options

ISO 14443A/B

ISO 18092

EMVCo

FeliCa

NFC A/B/F/P2P

When & Where to Use the IQnfc+ for Testing?

In the lab or manufacturing environments

For products in the PCB-level manufacturing or final product test lifecycle stages

For mobile or IoT devices
