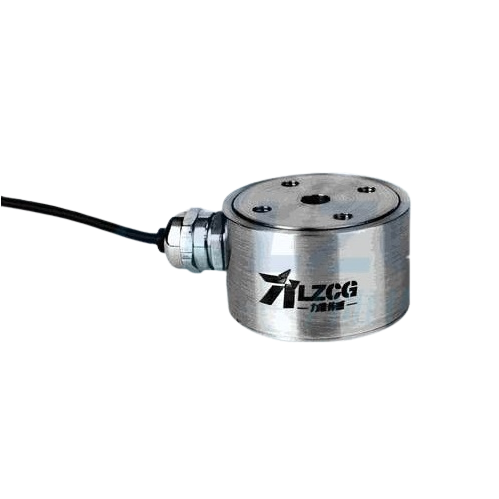

LZCG LF-605-30KG 柱型力传感器 (30kg)

Capacity: 30kg

Material: Stainless Steel

Rated Output: 2.0±10%mV/V

Zero Balance: ± 2 % F.S.

Non-linearity: 0.1% F.S.

Hysteresis: 0.1% F.S.

Repeatability: 0.1% F.S.

Creep (30min): 0.05% F.S.

Temp Effect on Output: 0.05% F.S. / 10℃

Temp Effect on Zero: 0.05% F.S. / 10℃

Output/Input Impedance: 350 (700)± 3Ω/385(750)±5Ω

Insulation: ≥5000MΩ/100VDC

Operating Temp Range: - 20 ~ 80℃

Safe overload: 150%

Maximum overload: 200%

Cable Size: φ 3 x 3m
