MADE MULTI-Flex+ Multimeter (50~2000A; 100~480V)

FUNCTIONS

MULTI-Flex+ is a digital multimeter, equipped with a flexible Rogowski coil current transducer (MADE- Flex™) for measuring the voltage and current and for checking the continuity on the low voltage network.

The combination of these two inputs enables the calculation of the instantaneous active power and Cos Phi on the electric network.

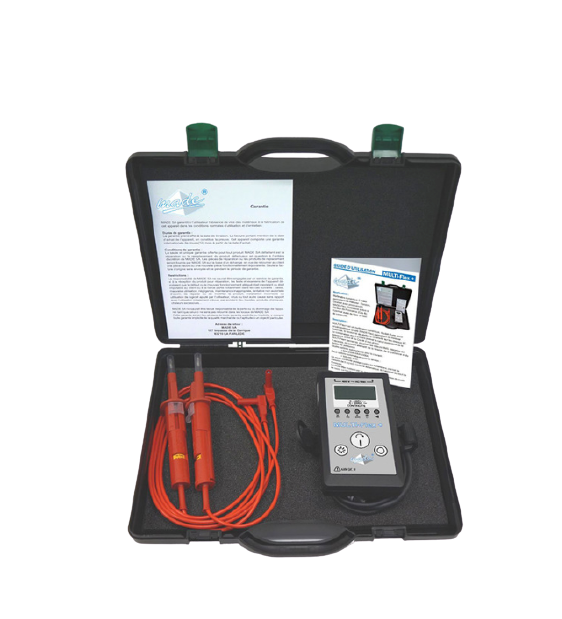

MULTI-Flex+, is provided in a carryind case, including two voltage cables, equiped with IP2X insulated plugs.

TECHNICAL CHARACTERISTIC

Current Input: MADE-Flex - 2000 Amp AC - Bandwidth 10 Hz-10 kHz

Voltage Input: Protected banana plugs and 2 IP2X leads (Mechanical Protection)

Range of current measurement: 4 ranges : 50, 200, 400, 2000 A AC RMS

Range of voltage measurement: 2 ranges : 100 - 480 V AC RMS

Range of power measurement :1 range : 0 - 100kW

Range of cos (Ф) measurement: 1 range : 0,00 to +1,00

Continuity test: 1 sound alarm starting at 200 Ω 0 to 2 kΩ

Peak factor: 2,5 at nominal intensity

Maximum current: 10 kA (MADE-Flex dielectric features)

Number of channels: 2 measurement ways (current and voltage)

Sampling: RMS values : 600 ms integration

Accuracy: 0,3 % (max value in a range) < P < 5 % (low value in a range) ; with respect to a signal frequency between 45 and 65 Hz

Influence of the sensor shape: 1 % for an oblong form

Influence of an adjacent conductor: 1 %

Influence of the conductor position: 1 %

Temperature range: Operation : -20°C to 50°C ; Storage : -20°C to 70°C

Power Supply: 9 V Type E-BLOCK 6 LR 61. PP3

Battery Life: Approx. 8 h on battery – uninterrupted

Display: 4 digit display

IP Standard: IP 55

Dimensions: 330 x 280 x 75 mm

Weight: 1.1 kg
