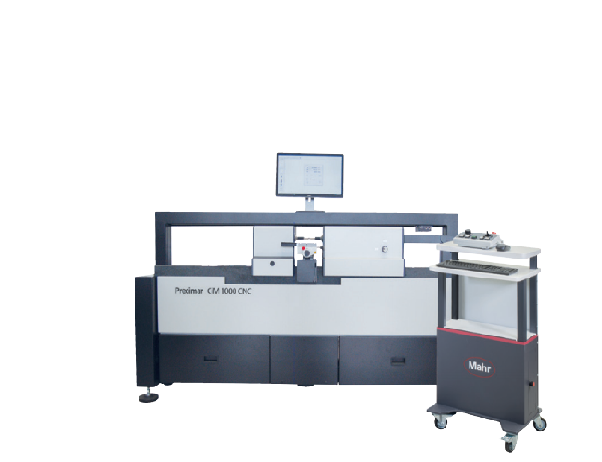

Mahr CiM 1000 CNC Precision Length Measuring Machine (outer 0~1000mm, inner 0.5~845mm)

Measuring range for outer measurement (mm): 0 ~ 1000

Measuring range for inner measurement (mm): 0.5 ~ 845

Direct measuring range (mm): 300

Position deviation / error limit (L in mm) (µm): ≤ (0.04+ L/2000)

Measuring uncertainty MPEE1 (L in mm) (µm): ≤ (0.055 + L/1500)

Measuring forces (N): 0 to 13.9

Repeatability (µm): ≤ 0,03

Contacting speed with joystick: 8 mm/s

Device length (mm): 2500

Mass (kg): 840

Table surface (A x B) (mm): 150 x 350

Detail

Accessories

Large number of accessory kits and modular components for completing a wide variety of measuring tasks, including the measurement of

Thread gages

Conical thread gages

Gears

Thread pitches

Factory calibration or DAkkS/DKD calibration can be additionally offered for this measuring station
