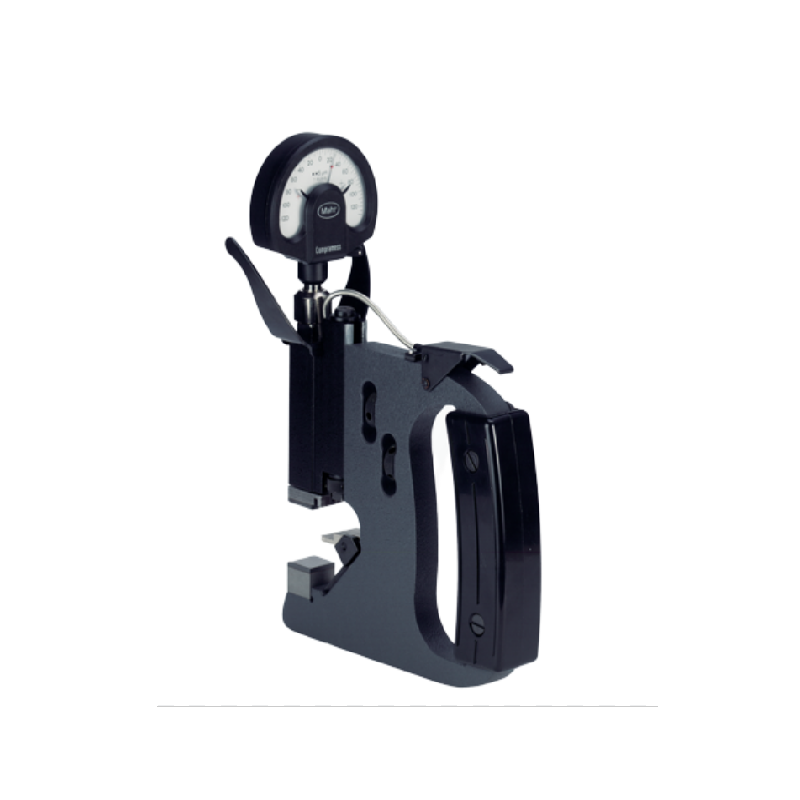

Mahr 2051664KAL 指示螺纹卡规 (EDI-300P-2, 25.4 - 50.8mm)

Product type: EDI-300P-2

Application range: 25.4 - 50.8mm

Measuring span: 0.5 mm

Measuring range: 0.02 inch

Size of measuring surface: 15.5 x 15.5 mm

Parallel error: 4 µm

Measuring force: 18 N

Mounting hole for indicator: 0.375 inch

Dimensions: a 50.8 mm | b 175 mm | c 29 mm | d 141 mm | e 154 mm |

Details

Dimension

Dimensional drawing 1
