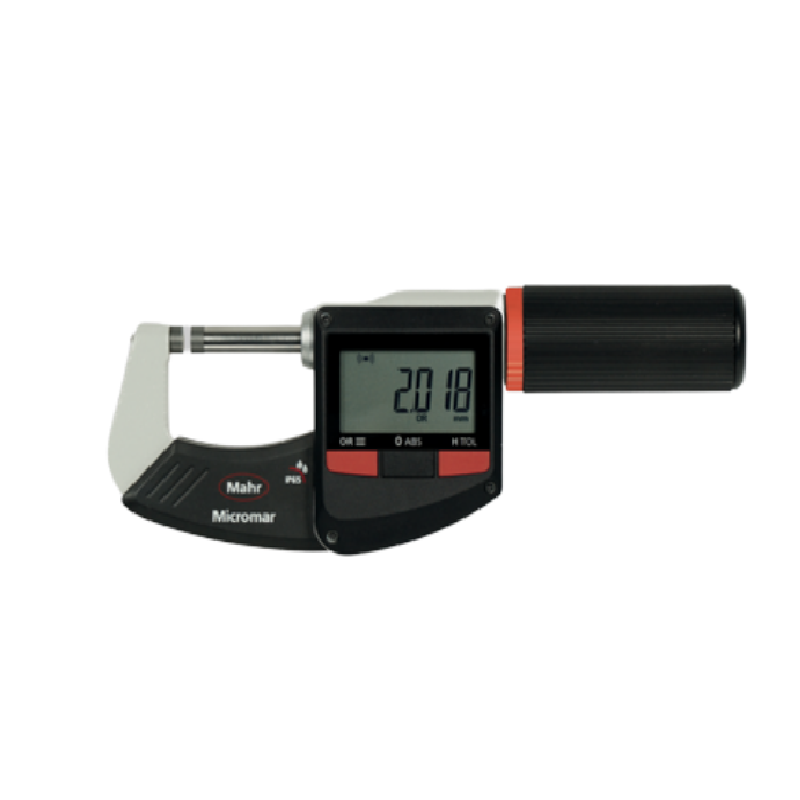

Mahr 4157020DKS 机械外径千分尺 (40 EWR-L, 0-25mm, IP65)

Standard: Factory standard

Measuring range mm: 0-25mm

Measuring range inch: 0-1"

Material Contact surface: carbide

Resolution mm/inch: 0.001 / .00005"

Error limit µm: 2 µm

Battery type: CR 2032 (3V Lithium)

Parallel error in µm: 2 µm

Flatness in µm: 0.6 µm

Spindle diameter: 6.5 mm

Spindle thread pitch_mm: 5 mm

Measuring force (N)": 5 - 10

Details

Dimensions: a 24 mm | b 9.5 mm | c 32 mm |

Dimensional drawing 1

Instruction
