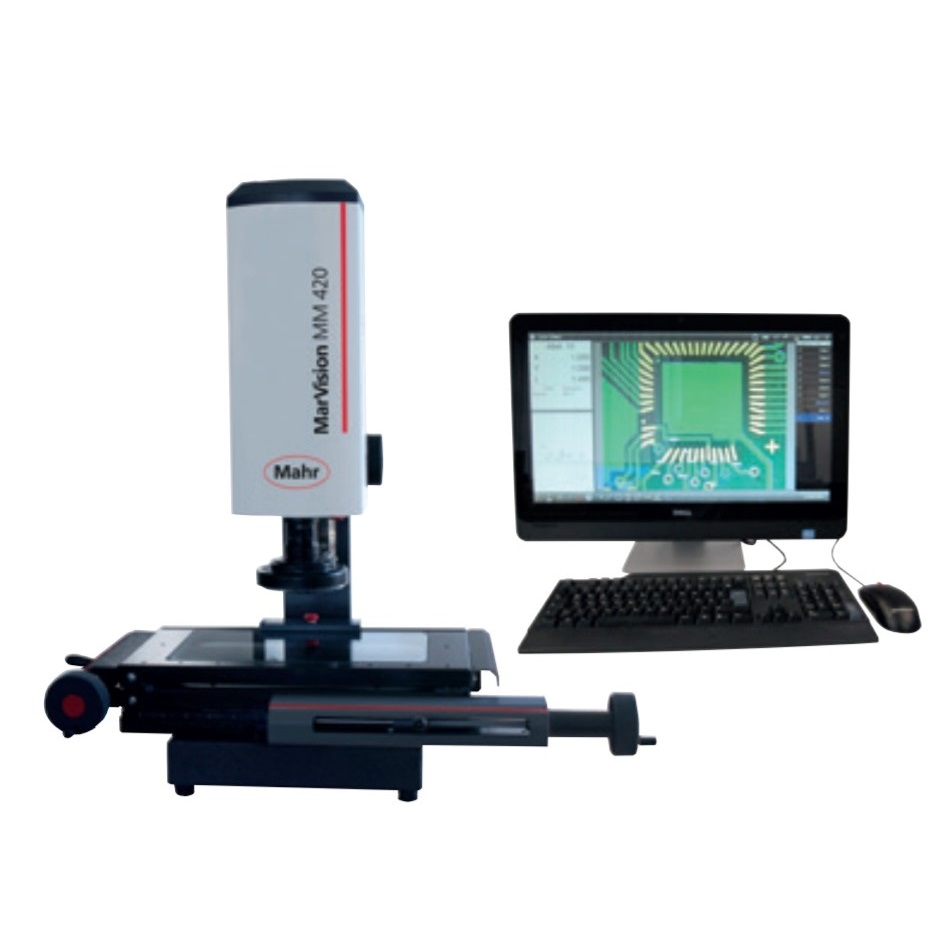

Mahr MM 420 车间测量显微镜,具有M3软件 (X/Y 100mm/100mm)

Measuring range X/Y (mm): 100 / 100

Size of table (mm): 270 x 210

Maximum table load (kg): 20

Measuring system: Built-in incremental scale

Measuring system - resolution (mm): 0.001

Measuring system - E1 X/Y (µm): 1.9 + (L/100)

Measuring system - E2 XY (µm): 2.9 + (L/100)

Magnification: 35 – 225x

Max. height of test piece (mm): 115

Max. height of test piece / 0.5-fold (mm): 20

Max. height of test piece with coax. (mm): 115

200 extension in Z (mm): 315

200 extension in Z / 0.5-fold (mm): 220

Illumination: LED back and front illumination, adjustable

Energy supply: 230 V / 50 Hz

H x W x D (mm): 700 x 480 x 430
