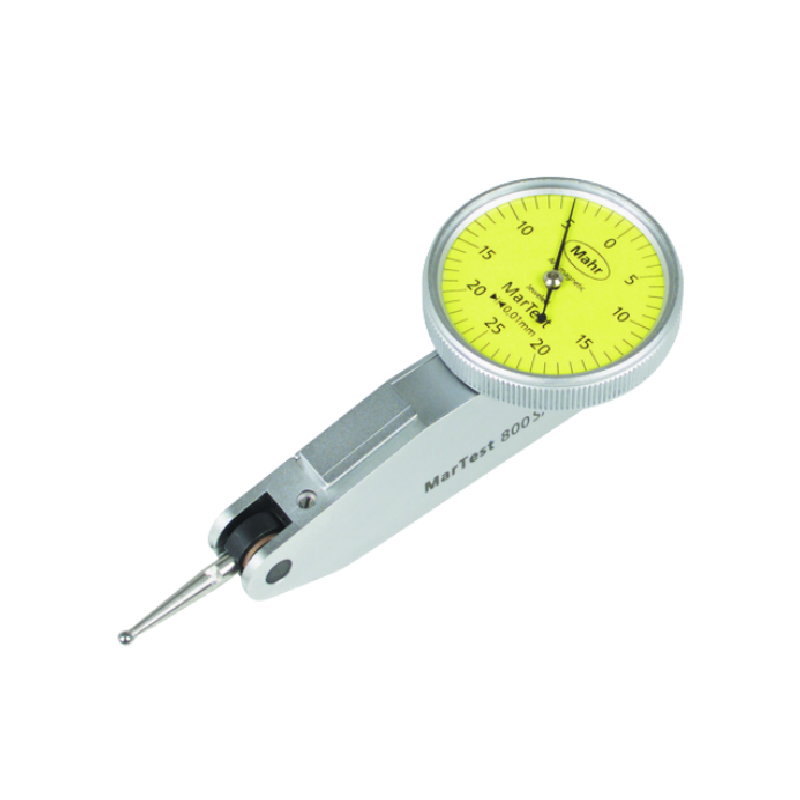

Mahr 4301200KAL 测试指示器 (800 SA, ± 0.25mm)

Measuring range: ± 0.25mm

Product type: 800 SA

Graduation value: 0.01mm

Standard: Factory standard

Type of dial face: 25-0-25

Range per rev.: 0.5 mm

Span of error fe: 5 µm

Total span of error fges: 8 µm

Measuring value hysteresis fu: 3 µm

Partial measuring range ft: 5 µm

Repeatability fw: 3 µm

Measuring force: 0.1 N

Scale diameter: 28 mm

Dial color: Yellow

Dimensions: b 30 mm | c 13.6 mm | d 17.8 mm | e 75 mm | f 99 mm

Dimension

Instruction
