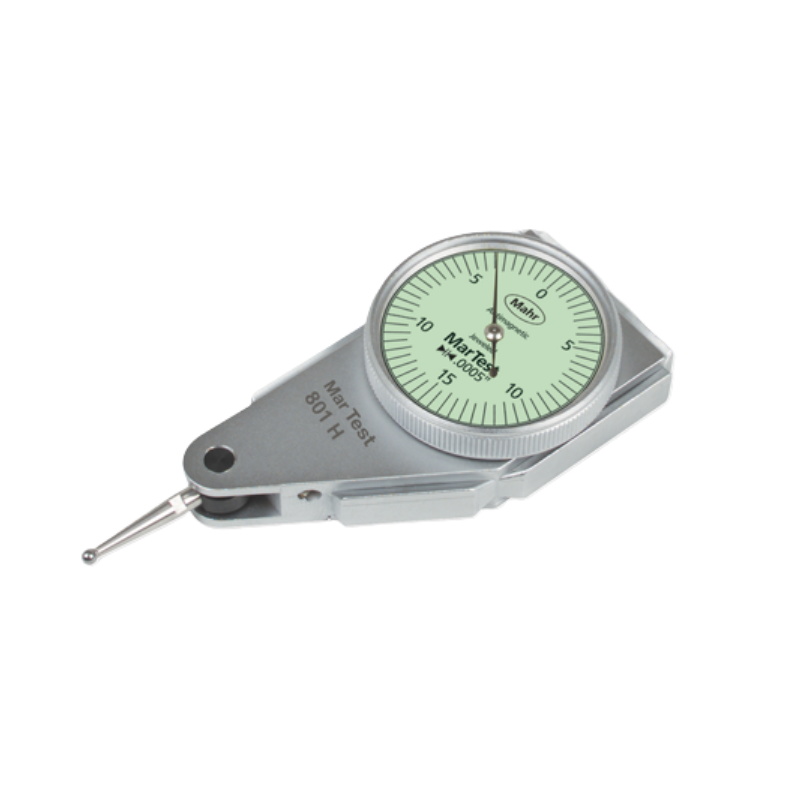

Mahr 4303950DKS 测试指示器 (800H, ± 0.4mm)

Measuring range: ± .015"

Product type: 801 H

Standard: Factory standard

Type of dial face: 15-0-15

Pointer rotation: .03"

Deviation range fe: .0004"

Total deviation range fges: .0005"

Measuring value hysteresis fu: .00012"

Partial measuring range ft: .0002"

Repeatability fw: .0001"

Measuring force: 0.25 N

Scale diameter: 1.1"

Dial color: Green

Details

Dimension

Dimensional drawing 1

Instruction
