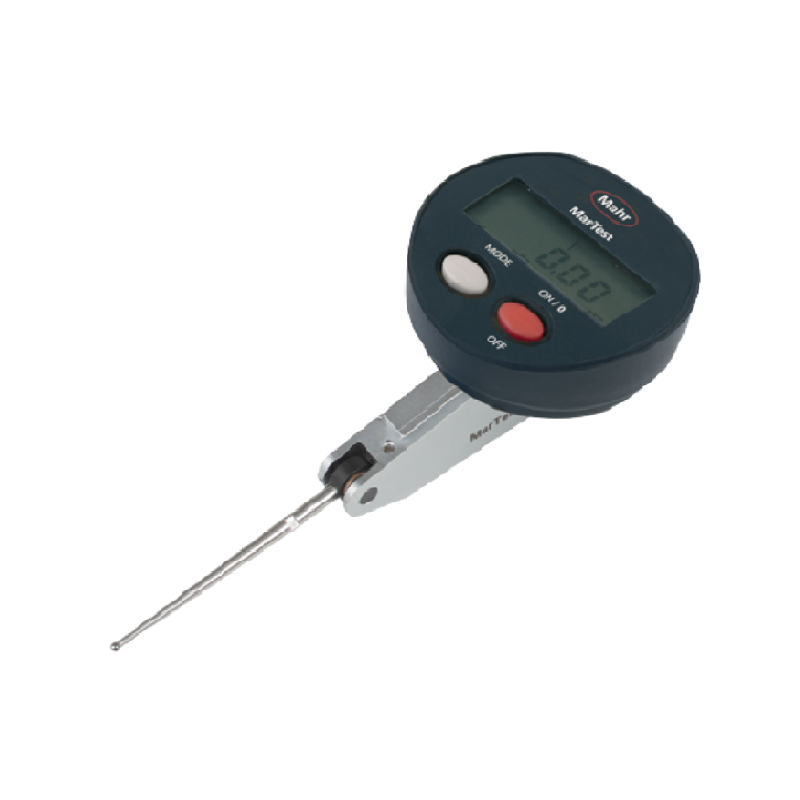

Mahr 4305120KAL 数字测试指示器 (800EW, ± 0.4mm/ ±.015", IP65)

Measuring range: ± 0.4mm/ ±.015"

Product type: 800 EW

Resolution: 0.001mm / .00005"

Battery type: CR 2032 (3V Lithium)

Standard: Factory standard

IP protection category: IP 65

Span of error fe: 10 µm

Total span of error fges: 13 µm

Measuring value hysteresis fu: 5 µm

Partial measuring range ft: 5 µm

Repeatability fw: 3 µm

Measuring force: 0.13 N

Dimensions: c 13.6 mm | d 17.8 mm | e 75 mm | f 99 mm
