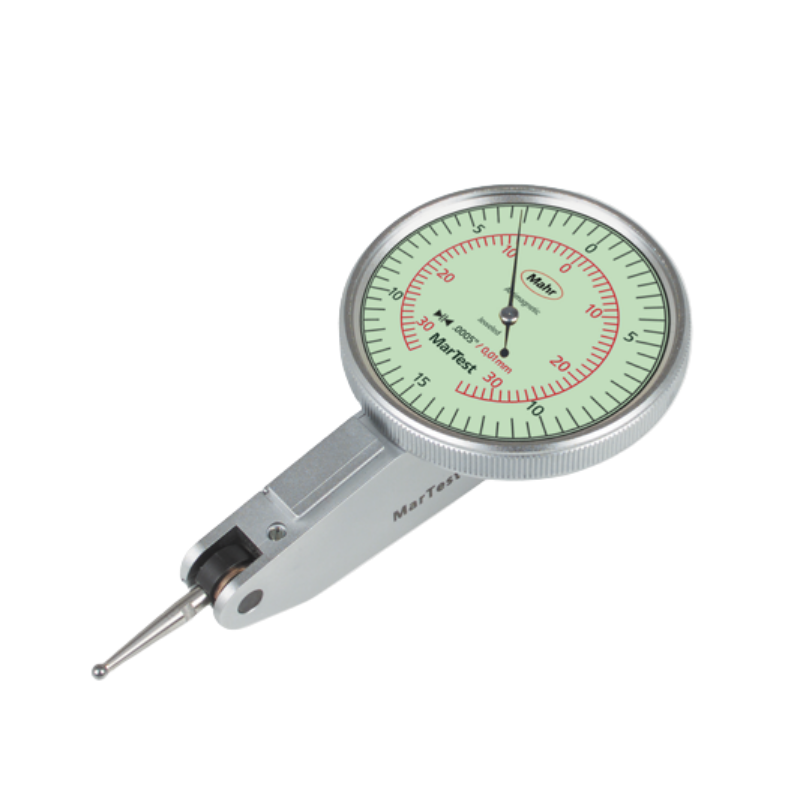

Mahr 4305950DKS 测试指示器 (801S, ± .015")
制造商: Mahr Model: 4305950DKS - 联系
Measuring range: ± .015"
Product type: 801 S
Standard: Factory standard
Type of dial face: 15-0-15
Pointer rotation: .03"
Deviation range fe: .0004"
Total deviation range fges: .0005"
Measuring value hysteresis fu: .00012"
Partial measuring range ft: .0002"
Repeatability fw: .0001"
Measuring force: 0.15 N
Scale diameter: 1.1"
Dial color: Green
Dimensions: b 30 mm | c 13.6 mm | d 17.8 mm | e 75 mm | f 99 mm
