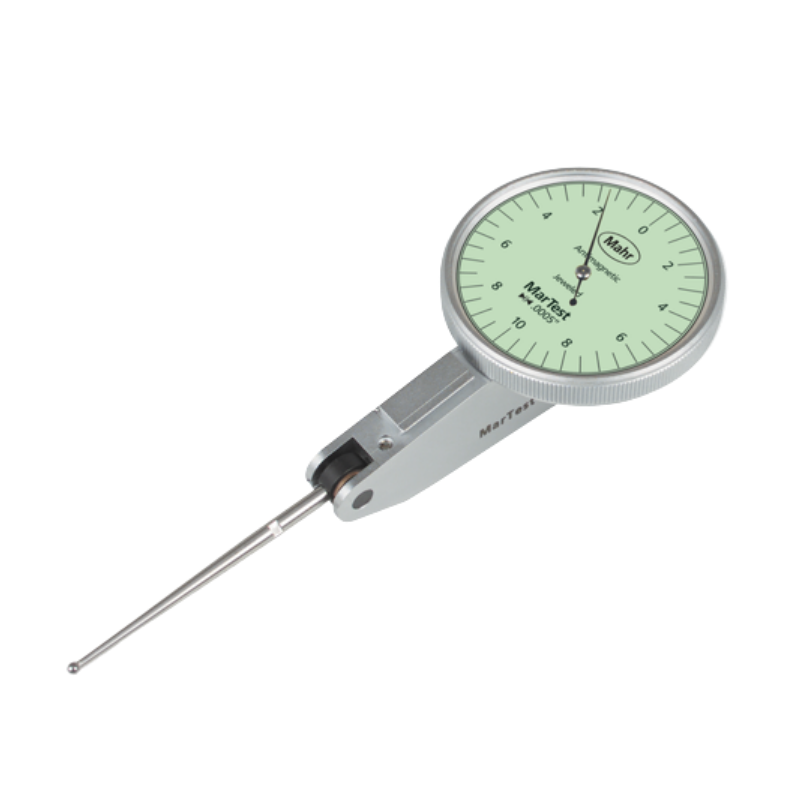

Mahr 4306950DKS 测试指示器 (801SL, ± 010")

Measuring range: ± 010"

Product type: 801 SL

Standard: Factory standard

Type of dial face: 10-0-10

Pointer rotation: .02"

Deviation range fe: .0004"

Total deviation range fges: .0005"

Measuring value hysteresis fu: .0002"

Partial measuring range ft: .0002"

Repeatability fw: .0001"

Measuring force: 0.07 N

Scale diameter: 1.1"

Dial color: Green

Dimensions: b 30 mm | c 40.3 mm | d 44.6 mm | e 102 mm | f 126 mm

Details

Dimension

Dimensional drawing 1
