Mahr 4308985KAL 测试指示器 (801 SGE, ± .004")

Measuring range: ± .004"

Product type: 801 SGE

Standard: Factory standard

Type of dial face: 4-0-4

Pointer rotation: .008"

Deviation range fe: .0004"

Total deviation range fges: .0005"

Measuring value hysteresis fu: .00012"

Partial measuring range ft: 0.0002 µm/.0002"

Repeatability fw: .0001"

Measuring force: 0.15 N

Scale diameter: 1.5"

Dial color: Green

Dimensions: a 40.5 mm | c 13.6 mm | d 17.8 mm | e 75 mm | f 99 mm

Details

Dimension

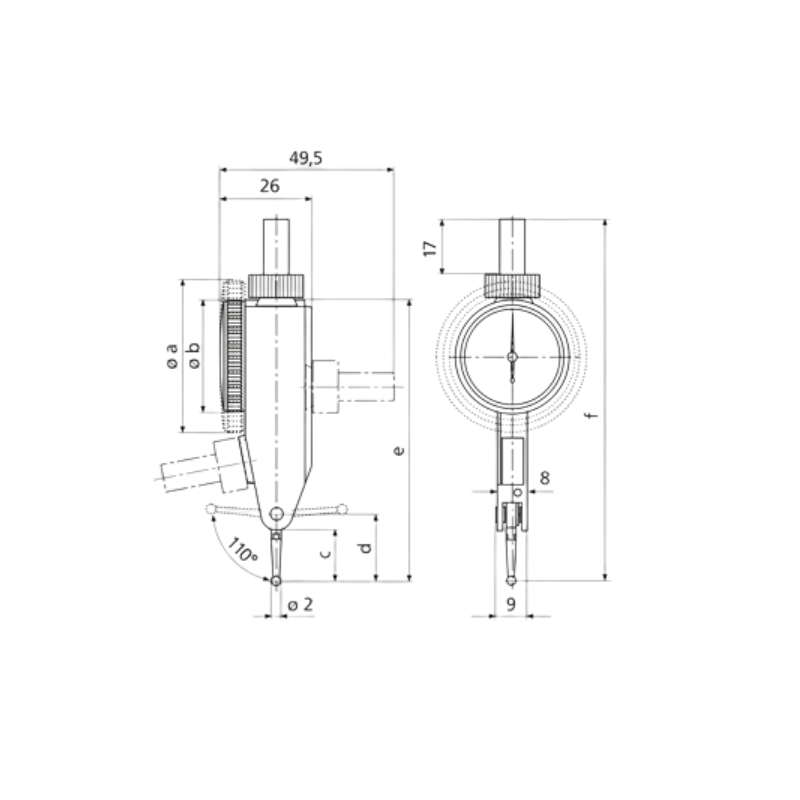

Dimensional drawing 1
