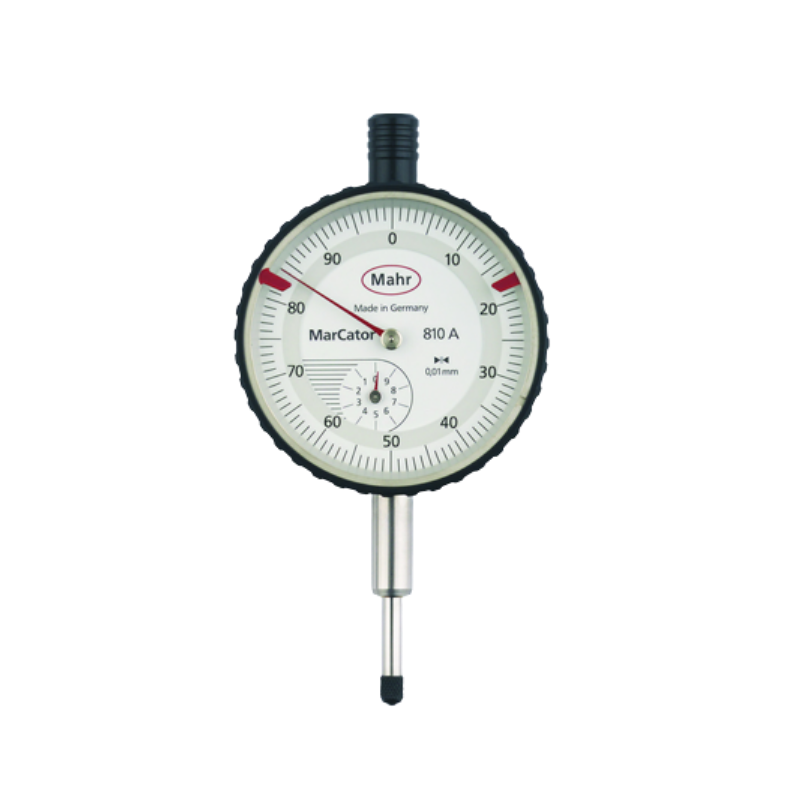

Mahr 4311050DKS 机械千分表 (810 A, 10mm)
制造商: Mahr Model: 4311050DKS - 报价要求
- 报价要求
- 联系
Measuring span: 10 mm
Product type: 810 A
Graduation value: 0.01mm
Standard: DIN 878
Type of dial face: 0-100
Range per rev.: 1 mm
Error limit measuring range: 15 µm
Error limit 1 revolution: 10 µm
Error limit 1/2 revolution: 9 µm
Error limit 1/10 revolution: 5 µm
Measuring value hysteresis fu: 3 µm
Repeatability fw: 3 µm
Overtravel: 0.1 mm
Scale diameter: 50 mm
Dial color: White
Dimensions: a 58 mm | b 23 mm | c 7.5 mm | d 52 mm | e 112 mm | f 22 mm | g 15 mm
Details
Dimension
