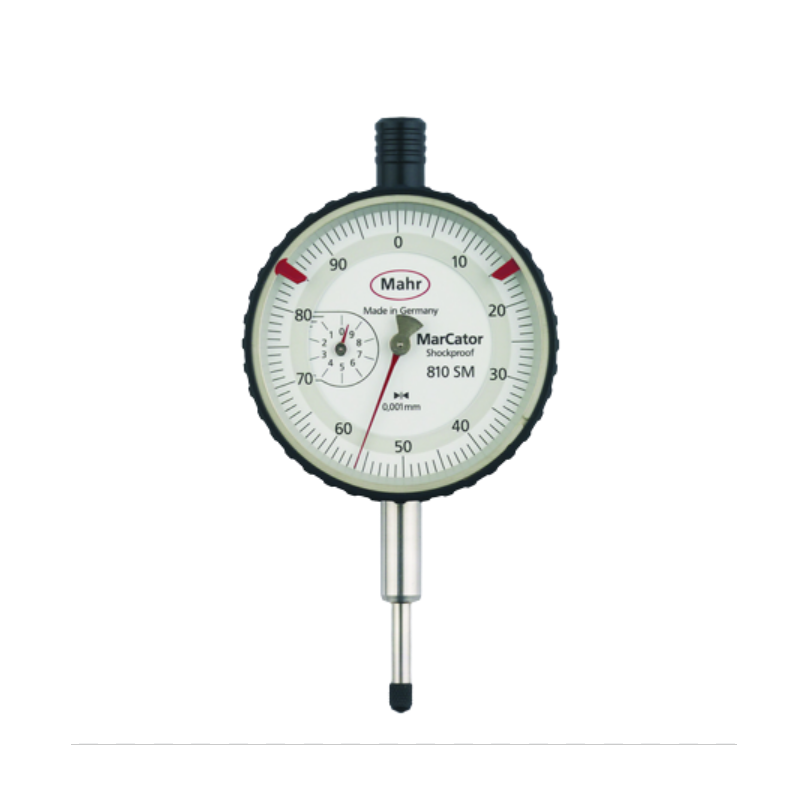

Mahr 4311070DKS 机械千分表 (810 SM, 1mm)

Measuring span: 1 mm

Product type: 810SM

Graduation value: 0.001mm

Standard: Factory standard

Type of dial face: 0-100

Range per rev.: 0.1 mm

Error limit measuring range: 4 µm

Error limit 1 revolution: 3 µm

Error limit 1/2 revolution: 2 µm

Error limit 1/10 revolution: 1 µm

Measuring value hysteresis fu: 1.5 µm

Repeatability fw: 1.5 µm

Overtravel: 4 mm

Scale diameter: 50 mm

Dimensions: a 58 mm | b 23 mm | c 8.5 mm | d 52 mm | e 111.5 mm | f 22 mm | g 15 mm

Details

Dimension

Dimensional drawing 1
