Mahr 4311080 表盘指示器 (810 SRM, 5mm, 0.001mm)

Product type 810 SRM

Measuring span: 5mm

Graduation value: 0.001mm

Type of dial face: 0-100-0

Range per rev.: 0.2mm

Error limit: 10µm

Error limit, 1 revolution: 5µm

Error limit, 1/2 revolution: 3µm

Error limit, 1/10 revolution: 2µm

Repeatability fw: 3µm

Hysteresis fu: 3µm

Overtravel: 0.1mm

Measuring force incoming measuring pin N: 1.2-1.7

Standard: factory

Shockproof movement: yes

Lifting protection cap: yes

Package contains: case

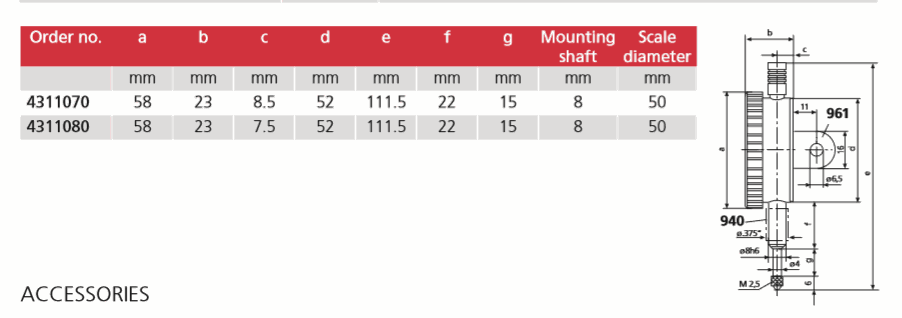

Accessories:

  • Adapter bush (.375” / 8 mm), type 940

  • Splash proof cap (58 mm)

  • Lug back, vertical, for 803, type 966

  • Lug back, horizontal, for 803, type 967
