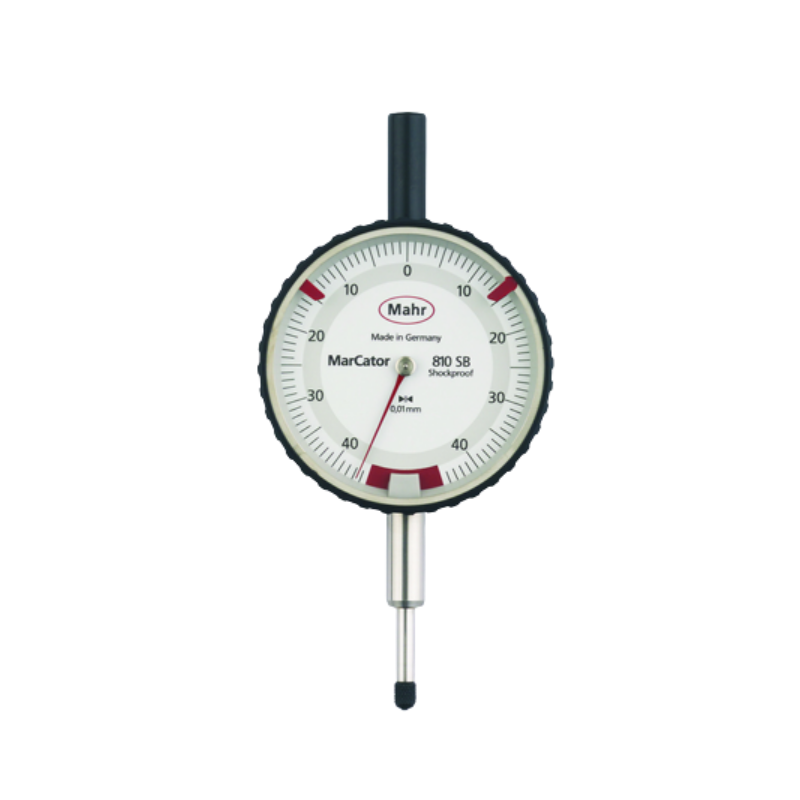

Mahr 4317000KAL 机械千分表 (810 SB, 0.08mm)
制造商: Mahr Model: 4317000KAL - 报价要求
- 报价要求
- 联系
Measuring span: 0.8 mm
Product type: 810 SB
Graduation value: 0.01mm
Standard: DIN 878
Type of dial face: 40-0-40
Range per rev.: 0.8 mm
Error limit measuring range: 7 µm
Error limit 1/2 revolution: 6 µm
Error limit 1/10 revolution: 5 µm
Measuring value hysteresis fu: 3 µm
Repeatability fw: 3 µm
Overtravel: 9 mm
Dial color: White
Dimensions: a 58 mm | b 23 mm | c 7.5 mm | d 52 mm | e 120 mm | f 22 mm | g 15 mm
Details
Dimension
