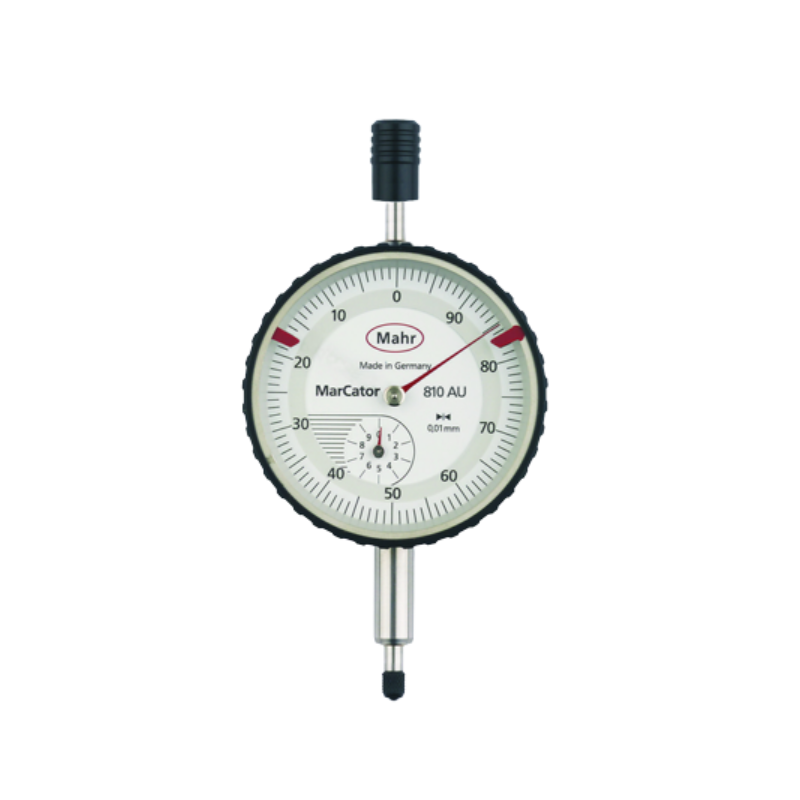

Mahr 4329050DKS 机械千分表 (810 AU, 10mm)

Measuring span: 10 mm

Product type: 810 AU

Graduation value: 0.01mm

Standard: Factory standard

Type of dial face: 100-0

Range per rev.: 1 mm

Error limit measuring range: 15 µm

Error limit 1 revolution: 10 µm

Error limit 1/2 revolution: 9 µm

Error limit 1/10 revolution: 5 µm

Repeatability fw: 5 µm

Overtravel: 0.1 mm

Scale diameter: 50 mm

Dial color: White

Dimensions: a 58 mm | b 23 mm | c 7.5 mm | d 52 mm | e 112 mm | f 22 mm | g 4.5 mm
