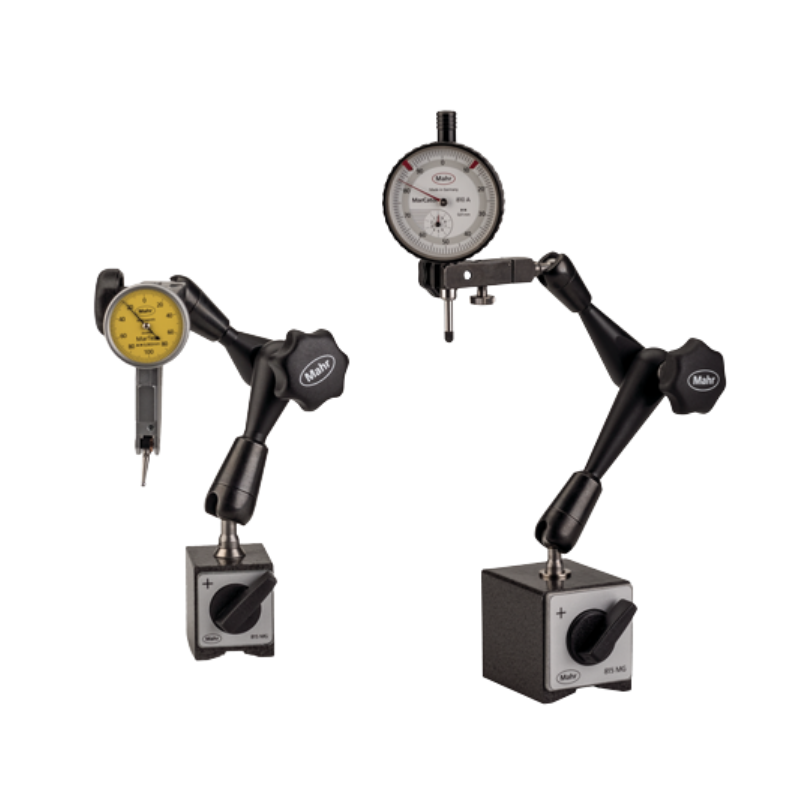

Mahr 4420360 带磁性底座的测量三脚架 (815 MG, 5 mm)

Fine adjustment range: 5 mm

V-Block for shaft diameter: 6 - 120

Base surface: 60 x 50 x 55 mm

Adhesive force prism: 800 N

Total height: 310 mm

Projection (max.): 200 mm

Mounting hole: 8H7

Dimensions: a 310 mm | b 200 mm | d 8 mm | j 120 mm | k 80 mm | l 49 mm |

Details

Dimension

Dimensional drawing 1
