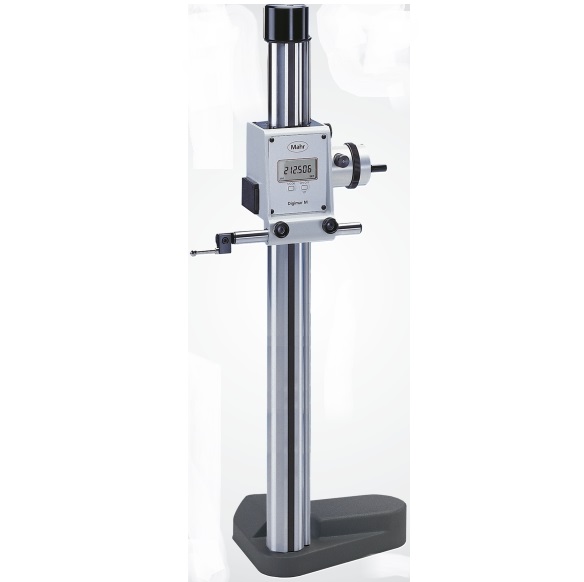

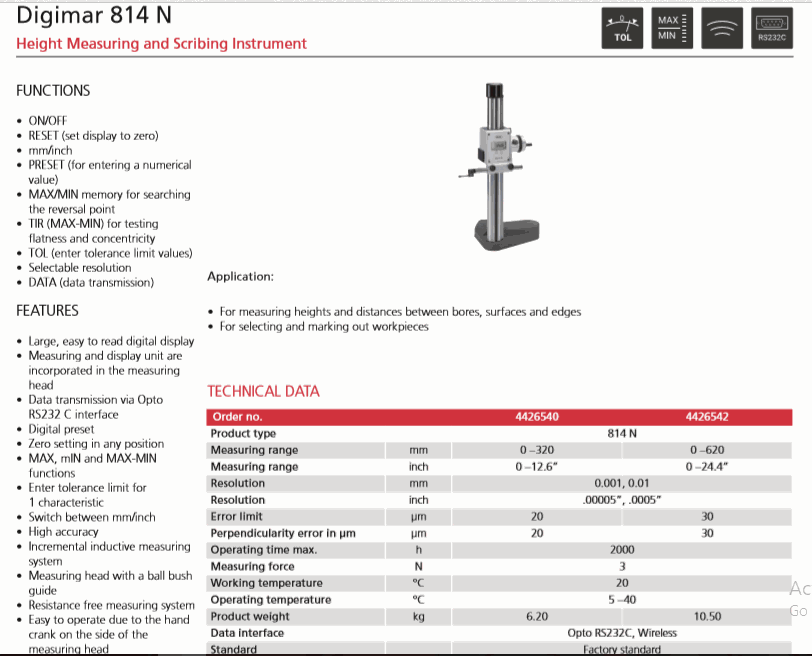

Mahr-Germany 4426540 Height Measuring and Scribing Instrument (814 N, 0 – 320mm/0 – 12.6”)

Product type: 814 N

Measuring range mm: 0 – 320

Measuring range inch: 0 – 12.6”

Resolution mm: 0.001, 0.01

Resolution inch: .00005”, .0005”

Error limit µm: 20

Perpendicularity error in µm :20

Operating time max. h: 2000

Measuring force N: 3

Product weight kg: 6.20

Data interface: Opto RS232C, Wireless

Standard: Factory standard

Package contains: height measuring instrument including operating and display unit, caliper arm 814t, spherical probe 814 m, 8 mm, battery, instruction manual, protection cover, test certificate
