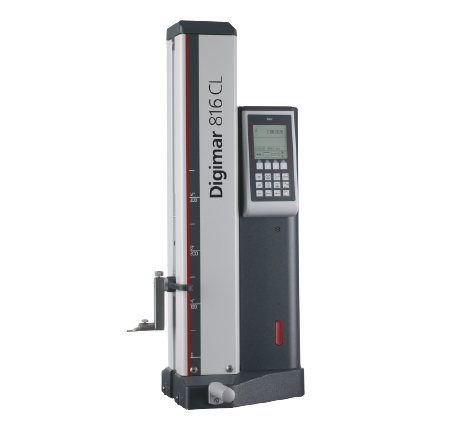

Mahr 4429031 测高划线仪 (816 CL, 0-600mm/0-24”)
制造商: Mahr Model: 4429031 来源: China - 报价要求
- 联系
Product type: 816 CL
Measuring range mm/inch: 0 – 600mm/0-24”
Application range: from 170mm upto 770mm
Resolution mm: 0.01, 0.001
Resolution inch: .0001”, .00005”
Error limit µm: (2.8+L/300) L in mm
Repeatability bores µm: 3
Repeatability planes µm: 2
Perpendicularity error in µm: 20
Operating time max. h: 10
Measuring force N: 1.0 +/– 0.2 N
Product weight kg: 30.00
Data interface: USB, Opto RS232C, Wireless
Standard: Factory standard
Package contains: height measuring instrument including operating and display unit, carrier 817h1, probe K6/51, setting block 817 eb, instruction manual, power source, USB cable, protection cover, calibration certificate
Accessories:
Data connection cable RS232C (2 m)
Transmitter for e-Stick, type 2000 e
Receiver, type e-Stick
Surface plate made from granite, 1000 x 630 mm , type 107 G
Stand, 1000 x 630 mm, type 107 Ug
Surface plate made from granite, 1200 x 800 mm, type 107 G
Stand, 1200 x 800 mm, type 107 Ug
