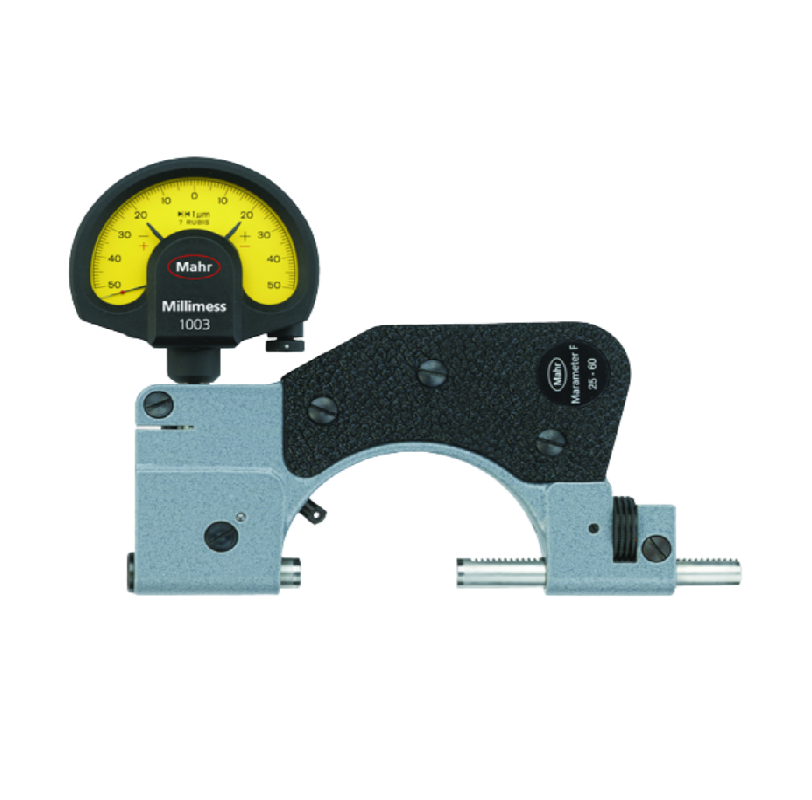

Mahr 4450001DKS 指示螺纹卡规 (840F, 25-60 mm)

Product type: 840F

Application range: 25-60mm

Measuring span: 2 mm

Parallel error: 2 µm

Flatness: 0.2 µm

Repeatability fw: 0.5 µm

Measuring force: 7.5 N

Dimensions: a 5 mm | b 140 mm | c 68 mm | d 9 mm | e 60 mm | f 77 mm | g 13 mm | h 13 mm | k 25 mm | l 30 mm |
