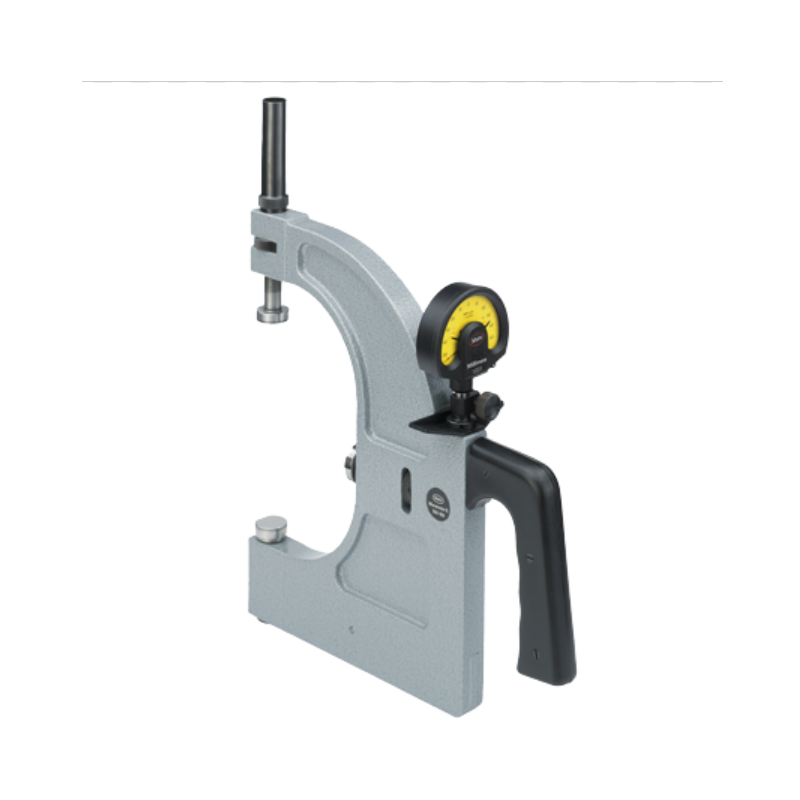

Mahr 4455003 指示螺纹卡规 (840FS, 100 - 150mm)

Product type: 840 FS

Application range: 100 - 150mm

Measuring span: 0.7 mm

Parallel error: 3 µm

Flatness: 0.5 µm

Repeatability fw: 1 µm

Measuring force: 15 N

Product weight: 1.7 kg

Dimensions: a 71 mm | b 62 mm | c 335 mm | d 22 mm | e 189 mm | f 263 mm | g 20 mm | h 18 mm |

Details

Dimension

Dimensional drawing 1
