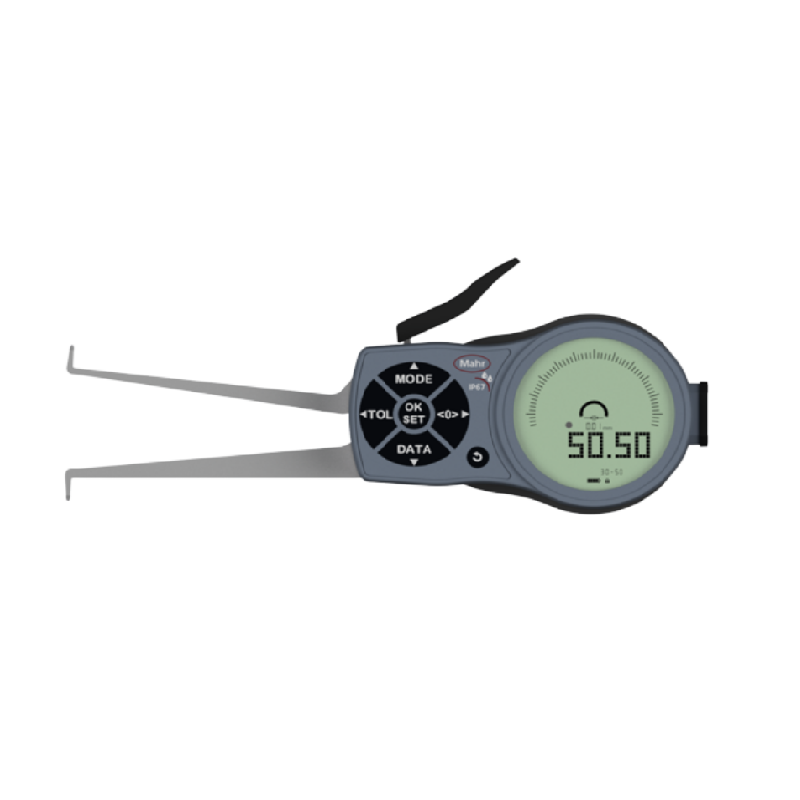

Mahr 4495463 内部测量用卡尺 (838 EI, 30 - 50 mm)

Product type: 838 EI

Measuring range: 30 - 50 mm

Application range: 30 - 50 mm

Error limit: 0.03 mm

Repeatability: 0.01 mm

Measuring force: 1.1 - 1.6 N

Measuring depth: 85 mm

Length of moving measuring contact: 7.3 mm

Groove depth: 7 mm

Length of fixed measuring contact: 7.3 mm

Groove width: 1.2 mm

Measuring contact ball diameter: 1 mm

Details

Dimension

Dimensional drawing 1
