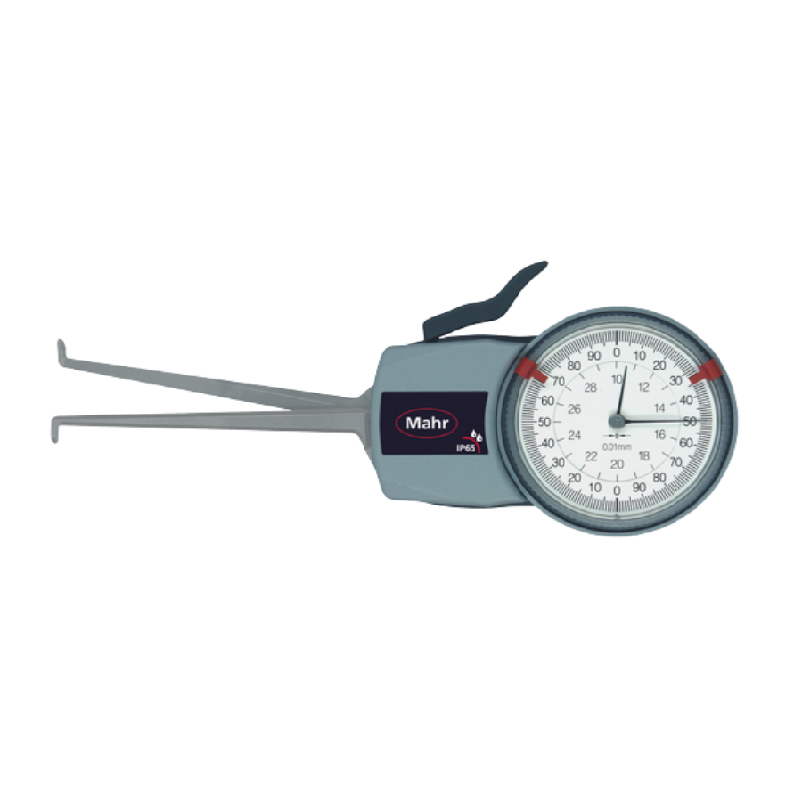

Mahr 4495468 内部测量用卡尺 (838 EI, 13 - 43 mm)

Product type: 838 EI

Measuring range: 13 - 43 mm

Application range: 13 - 43 mm

Error limit: 0.04 mm

Repeatability: 0.02 mm

Measuring force: 1.2 - 1.7 N

Measuring depth: 127 mm

Length of moving measuring contact: 5.7 mm

Groove depth: 5.7 mm

Length of fixed measuring contact: 5.7 mm

Groove width: 1.6 mm

Measuring contact ball diameter: 1.3 mm

Details

Dimension

Dimensional drawing 1
