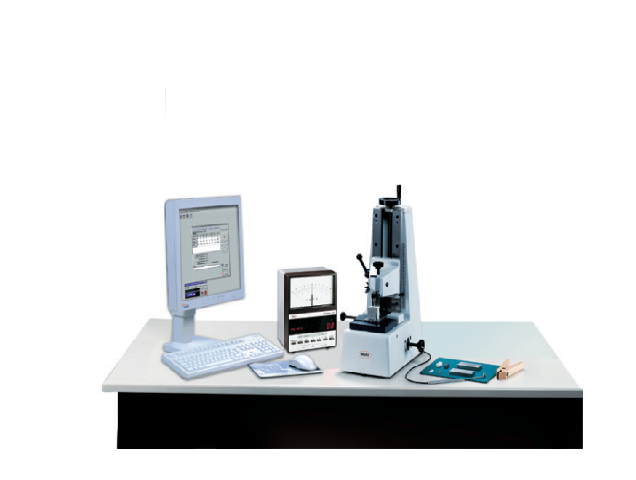

Mahr 826 PC Gage Block Measuring Instrument (0.5-170mm)

Stylus ball radius, upper probe: 1.500000

Stylus ball radius, lower probe: 1.500000

Table surface (A x B) mm: 60 mm x 55 mm

Application range (mm): 0.5 to 170

 Direct measuring range (mm):0.2

Repeatability (µm): ± 0.01

Mass (kg): 37



• QMSOFT® / QM-Block calibration software for the

calibration and data management of gage blocks and

gage block sets

• The evaluation program runs under Windows 7


• Excellent thermal insulation with wraparound acrylic

glass screen

• 826 Va HS lifting device for fast and quiet pneumatic

lifting of inductive probes via foot switch

• Temperature compensation

• Pincers, gage block suction lifter, optical flat, lay-on
