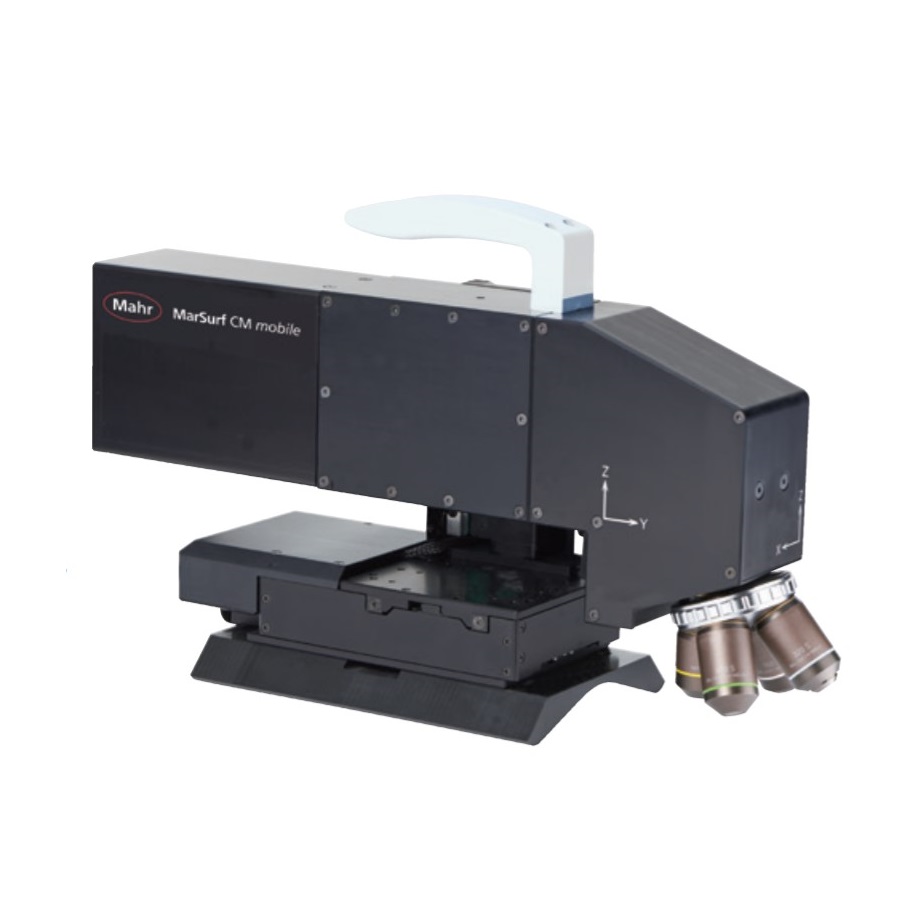

Mahr CM mobile 3D表面测试仪 (x 50mm, y 50mm, z 35mm)

Resolution: up to 2 (nm) vertical

Measuring speed: up to 100fps

Measuring principle: Confocal,High-performance LED (505nm)

Other: Collision detection in xyz direction

Power supplied: 100 - 240 V

Surface parameters: ISO 4287, ISO 13565, ISO 25178, …

Positioning volume x: 50 mm

Positioning volume y: 50 mm

Positioning volume z: 35 mm


Detail

Supplied with:

•  Confocal measuring head

–B/W camera

–4x lens revolver

•  Control electronics integrated in the system

•  Motorized XY table (50x50 mm) with glass scales

•  Motorized Z-axis (35 mm)

•  Laptop or measuring system computer

with 24” TFT monitor selectable

•  Objective lenses:

–5x to 100x selectable

•  MarSurf MSW

•  MarSurf
