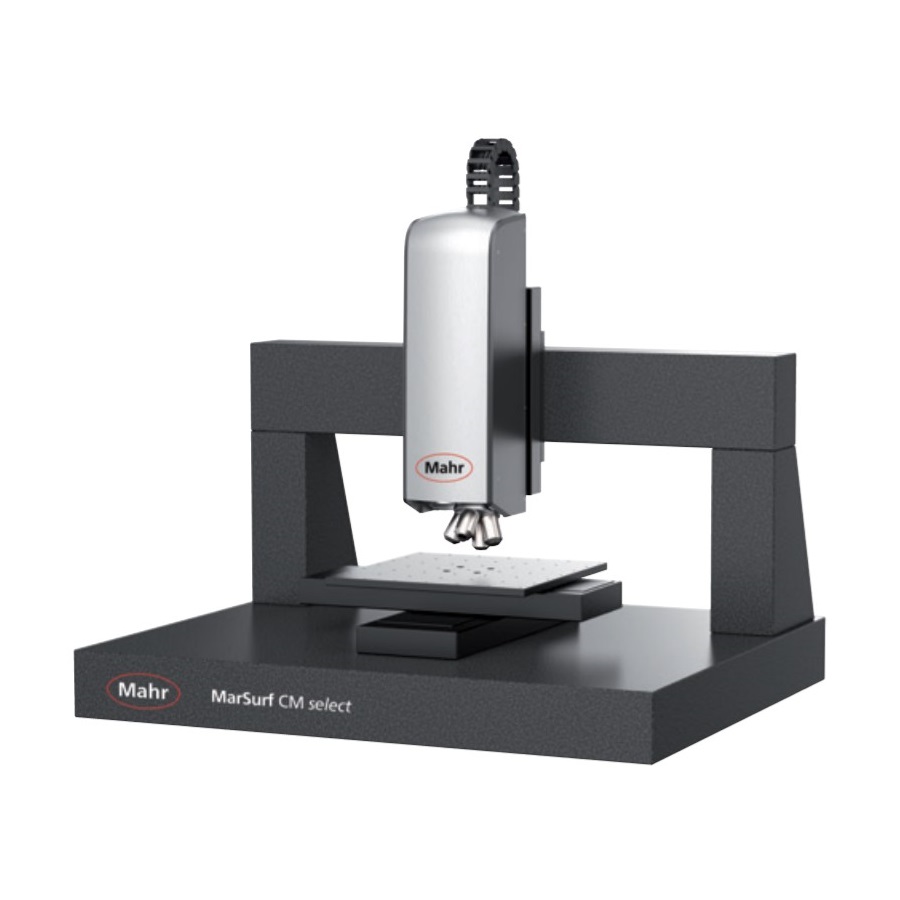

Mahr CM select 3D表面测试仪 (x 300mm, y 300mm, z 100mm)

Resolution: up to 2 (nm) vertical

Measuring speed: up to 100fps

Measuring principle: Confocal,High-performance LED (505nm/white)

Other: Collision detection in xyz direction

Power supplied: 100 - 240 V

Surface parameters: ISO 4287, ISO 13565, ISO 25178, …

Positioning volume x: 300 mm

Positioning volume y: 300 mm

Positioning volume z: 100 mm


Detail

Supplied with:

•  Confocal measuring head

–HDR camera (B/W or color camera)

–4x lens revolver with identification (optional)

•  Gantry design including control electronics

•  Motorized XYZ axes available in different variants

•  Industrial computer including two 24” TFT monitors

•  Objective lenses:

–5x to 100x selectable

•  Vibration damping system available

•  Multi-sensor system (optional)

•  Overview camera (optional)

•  MarSurf MSW

•  MarSurf ASW

•  MarSurf MfM
