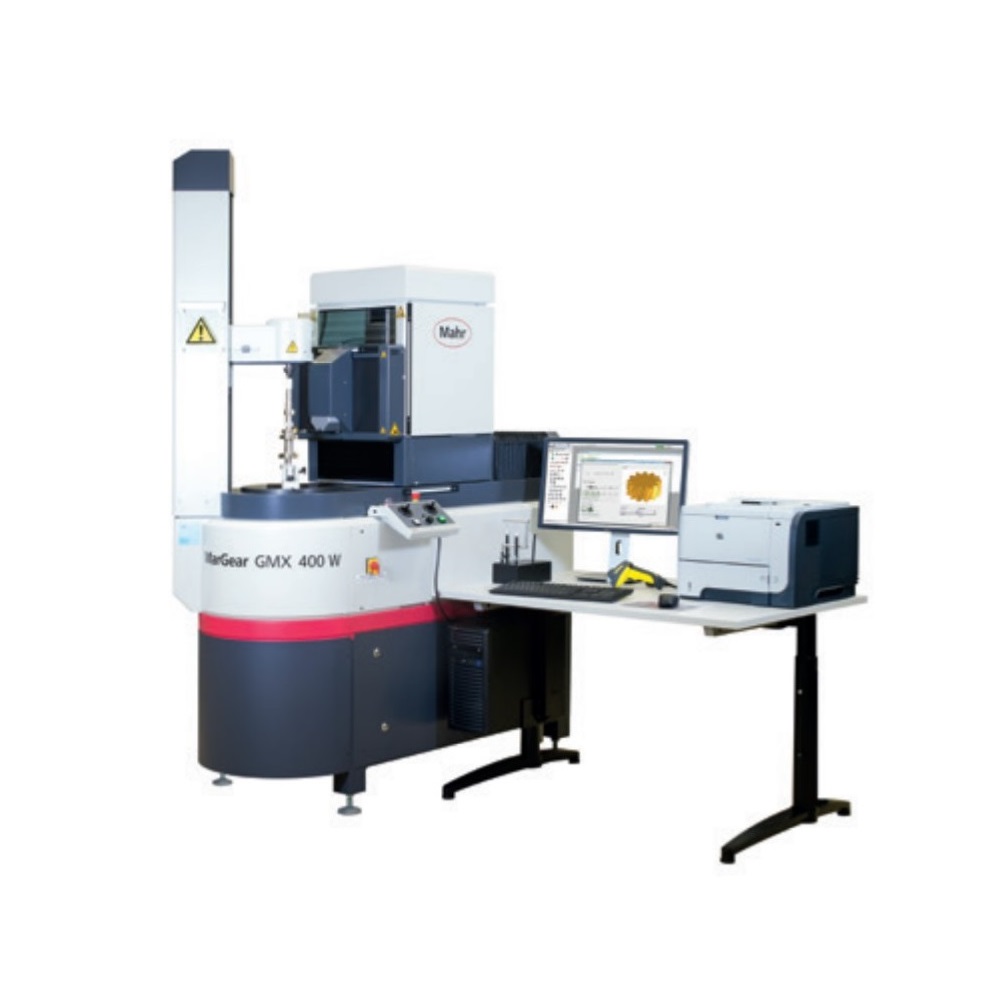

Mahr GMX 400 W 万能齿轮测量中心 (X 200mm, Y 200mm, Z 320mm)

Max. workpiece weight [kg]: 60 (80 on request)

Mass [kg]: 760

Accuracy: Accuracy class I for gear measurements in accordance with VDI/VDE 2612/2613 Group 1 at 20°C ± 2°C

Axial runout deviation (µm+µm/mm measuring radius): 0.11 µm + 0.0008 µm/mm

Radial runout deviation (µm in table height): ≤ 0.11 µm

Height (mm): 1920 mm

Width (mm):621 mm

Measuring path Z (mm): 320

Measuring path Y (mm): 200

Diameter max.* [mm]: 400

Distance between peaks [mm]:2 ... 700 mm

Length (mm): 1520 mm

Measuring path X (mm): 200

Options:

• Active damping system

• Data Matrix Scanner

Detail

ACCESSORIES

• Data matrix scanner

• Range of chucks for “clamping on the fly” and

measurements on “virtually” aligned workpieces

(wobble coordinate system)

• Optional roughness probe

• Active vibration damping system
