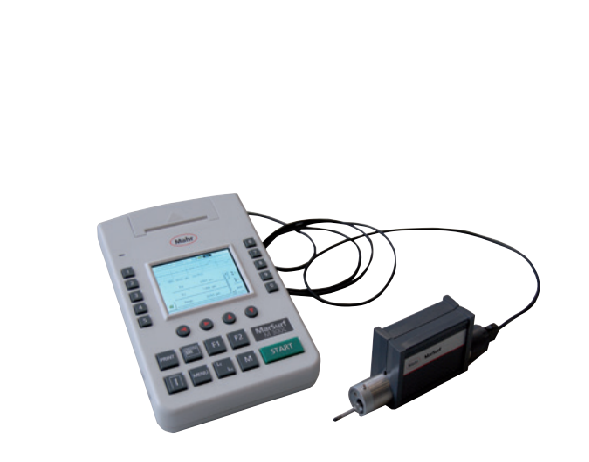

Mahr M 300 C 移动式粗糙度测量仪 (0.350mm)
制造商: Mahr Model: M 300 C 来源: Germany 保障: 12 Month - 报价要求
- 联系
Parameters: Ra, Rq, Rz (Ry (JIS) is equivalent to Rz), Rz (JIS), Rmax, Rp, RpA (ASME), Rpm (ASME), Rpk, Rk, Rvk, Mr1, Mr2, A1, A2, Vo, Rt, R3z, RPc, Rmr (tp (JIS, ASME) is equivalent to Rmr), RSm, RSk, S, CR, CF, CL, R, Ar, Rx, Rv, W (MOTIF)
Stylus: 2 µm
Probe: Inductive skidded probe
Measuring range (mm): 0.350
Profile resolution: 8 nm
Filter: Gaussian filter, Ls filter
Cutoff Ic: 0.25 mm, 0.8 mm, 2.5 mm,automatic
Number n of sampling length: Selectable: 1–5
Traversing length Lt: 1.75 mm, 17.5 mm, 5.6 mm, automatic
Evaluation lenth In: 1.25 mm, 4 mm, 12.5 mm
Contacting speeds: 0.5 mm/s
Measuring force (N): 0.00075
Printing speed: Approx. 6 lines/second corresponds to approx. 25 mm/s (1 in/s)
Thermopaper Ø 40.0 mm–1.0 mm, width 57.5 mm–0.5 mm, coated
LC display: High resolution color display, 3.5”, 320 x 240 pixel
Data interface: RS232C, USB, Digimatic, USB A
Relative humidity: 30 % to 85 %
Operating temp: +5 °C to +40 °C
Storage temp: –15 °C to +55 °C
Protection: IP 42
Power supplied: NiMH battery, ~500 measurements
Measuring instrument (L x W x H) (mm): 190 x 140 x 75 mm
Weight (kg): 4.1
