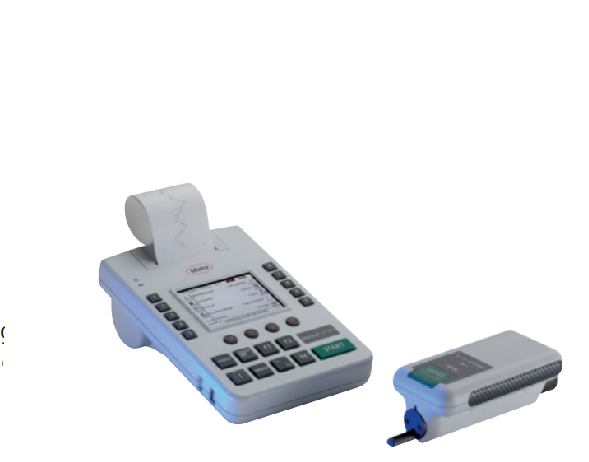

Mahr M 300 移动式粗糙度测量仪 (0.350mm, 2µm)

Parameters: Ra, Rz (Ry (JIS) is equivalent to Rz), Rz (JIS), Rq, Rmax, Rp, RpA (ASME), Rpm, (ASME), Rpk, Rk, Rvk, Mr1, Mr2, A1, A2, Vo, Rt, R3z, RPc, Rmr (tp (JIS, ASME) is equivalent to Rmr), RSm, RSk, S, CR, CF, CL, R, Ar, Rx, Rv, W (MOTIF)

Stylus: 2 µm

Probe: Inductive skidded probe

Measuring range (mm): 0.350

Profile resolution: 8 nm

Filter: Gaussian filter, Ls filter

Cutoff Ic: 0.25 mm, 0.8 mm, 2.5 mm

Number n of sampling length: Selectable: 1–5

Traversing length Lt: 1.75 mm, 5.6 mm, 17.5 mm

Evaluation lenth In: 1.25 mm, 4 mm, 12.5 mm

Contacting speeds: 0.5 mm/s

Measuring force (N): 0.00075

Printing speed Approx. 6 lines/second corresponds to approx. 25 mm/s (1 in/s)

Thermopaper Ø 40.0 mm–1.0 mm, width 57.5 mm–0.5 mm, coated

LC display: High resolution color display, 3.5”, 320 x 240 pixel

Data interface: RS232C, USB, Digimatic, USB A

Relative humidity: 30 % to 85 %

Operating temp: +5 °C to +40 °C

Storage temp: –15 °C to +55 °C

Protection: IP 42

Power supplied: NiMH battery, 1.000 measurements

Measuring instrument (L x W x H) (mm): 190 x 140 x 75 mm

Weight (kg): 4.1
