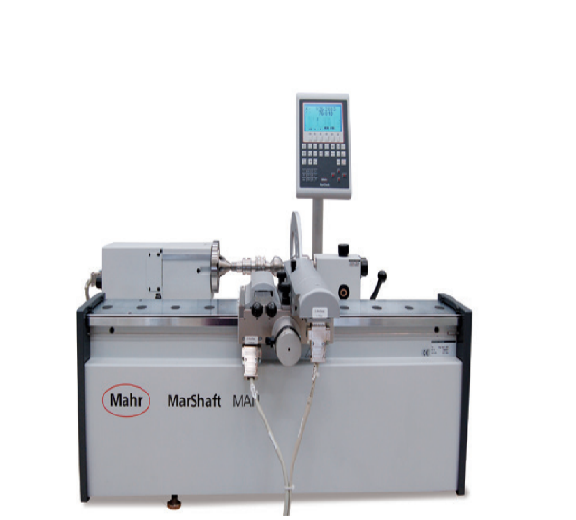

Mahr MAN 手动触轴测量机 (X:120mm/120mm,Z:400mm-2400mm)

Measuring range length (Z) (mm): 400 / 800 / 1200 / 1600 / 2000 / 2400

Measuring range diameter (X) (mm): 120/220

Workpiece weight (max.) in (kg): 20 / 60

Length/diameter resolution (mm): 0.0001

Angle resolution (°): 0.001

Length error limit (Z) (µm): (3 + L/100) µm, L (length) in mm

                                           (at 20°C ± 1°C on reference standard)

Diameter error limit (X) (µm): (0.8 + L/100) µm, L (length) in mm

                                                (at 20°C ± 1°C on reference standard)

Drives: manual

Lens: Optical measuring system (OMS) with matrix camera and software

Detail

Datasheet;
