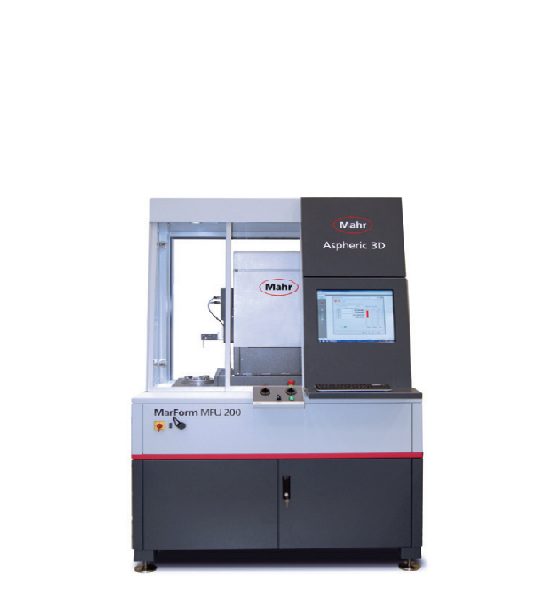

Mahr MarForm MFU 200 精密3D测试台 (Z:0,3µm,X:0,3µm)

Roundness deviation (µm+µm/mm measuring height) *: 0,01 + 0,0002

Roundness deviation (µm+µm/mm measuring height) **: 0,02 + 0,0004

Axial runout deviation (µm+µm/mm measuring radius) *: 0,02 + 0,0002

Axial runout deviation (µm+µm/mm measuring radius) **: 0,04 + 0,0004

Centering and tilting table: automatic

Table diameter (mm): 180

Table load capacity, centered (N): 200

Speed (rpm) 50 Hz / 60 Hz: 0.1 - 200

Straightness deviation / 100 mm measuring path (µm)**, Z axis: 0.1

Straightness deviation / total measuring path (µm)**, Z axis: 0.3

Parallelism deviation Z-/C axis in tracing direction, measuring path (µm): 0.6

Measuring speed (mm/s), Z axis: 0.1-50

Positioning speed (mm/s), Z axis: 0.1-50

Straightness deviation / total measuring path (µm)**, X axis: 0.3

Perpendicularity X/C axis, measuring path (µm): 0.3

Positioning speed (mm/s), X axis: 0.1 - 50

Measuring speed (mm/s), X axis: 0.1 - 50
