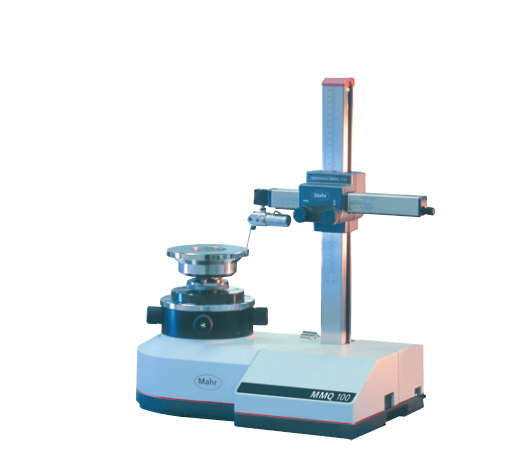

Mahr MMQ 100 紧凑型测量机 (160mm, 200N)

Roundness deviation (µm+µm/mm measuring height): 0,025 + 0,0003

Axial runout deviation (µm+µm/mm measuring radius): 0,02 + 0,0003

Table diameter (mm): 160

Table load capacity, centered (N): 200

Speed (rpm) 50 Hz / 60 Hz: 5 / 6

Positioning path (mm), Z axis: 300, manual

Z axis positioning: manual

Positioning path (mm), X axis: 180, manual

Supply with:

•  MarForm MMQ 100

•  Digital encoders in X/Z

•  T20W probe

•  MarWin®

EasyForm Software

•  MarWin PC with WIN 10 operating system

•  24” TFT monitor

•  Touch sensitive touch screen monitor (optional

OPTIONS:

•  AdvancedForm

•  Mahr QE QS-STAT data export
