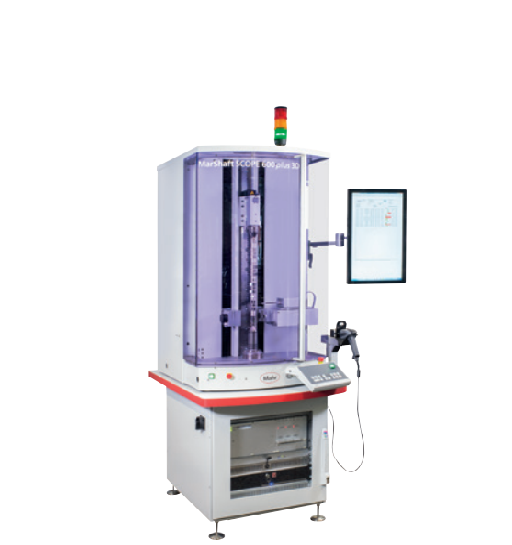

Mahr SCOPE 600 plus 3D 光轴测量系统 (Z:600mm,X:120mm)

Measuring range length (Z) (mm):600

Measuring range diameter (X) (mm):120

Length/diameter resolution (mm):0.01 to 0.0001

Angle resolution (°): 0.01 to 0.0001

Length error limit (Z) (µm): (2 + L/125) L in mm (at 20°C ± 1°C on reference standard)

Diameter error limit (X) (µm): (1.0 + L/125) L in mm (at 20°C ± 1°C on reference standard)

Lens: Telecentric precision lens

          High-resolution CCD array

Drives: Servo motors

Workpiece weight (max.) (kg): 15
