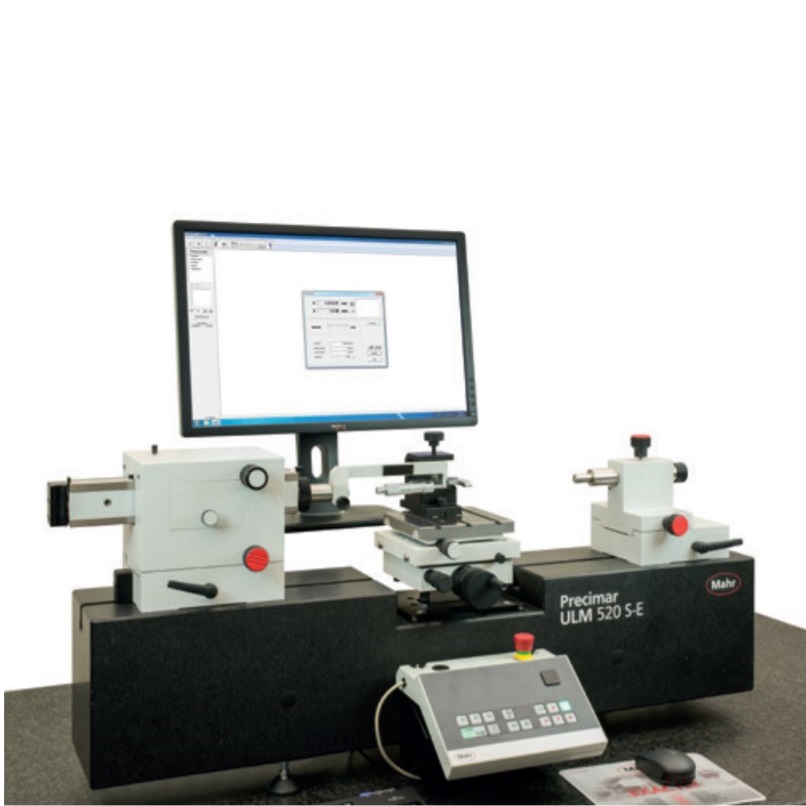

Mahr ULM 520 S-E 测量仪器校准器 (outer 0-520mm,inner 0.5-365mm, 0.09+L/2000)

APPLICATIONS

Calibration of:

• Plain plug gages and gage rings

• Setting gage rings

• Snap gages

• Spherical gage blocks, internal micrometers

• Gage blocks

• Thread gages

• Taper thread gages

• Gear gages

• Taper gages

• Dial indicators

• Dial comparators

• 2-point bore gages

• Outside micrometers

• 2-point inside micrometers

Direct measuring range [mm]:

    Outer measurement: 0 to 520

    Inner measurement: 0.5 to 365

Measuring range for outer measurement [mm]:0 to 520

Measuring range for inner measurement [mm]:0.5 to 365

Measuring uncertainty MPEE1(L in mm) [µm]:

      only with ABBE measuring element: MPE

      E1 ≤ (0.09+L/2000)

      with base bed measuring system: MPE

      E1 ≤ (0.6+L/1000)

Repeatability [µm]:

      With Abbe measuring element: ≤ 0.05

      With base bed measuring system: ≤ 0.2

Measuring forces [N]: 0.2 ; 1.0 to 4.5 ; 11

Device length [mm]: 1080

Mass [kg]: 160

Details

ACCESSORIES

• Large number of accessory kits and modular components for completing a wide variety of measuring

tasks, including the measurement of:

• Thread gages

• Taper gages

• Conical thread gages

• Gears

• Factory calibration or DAkkS/DKD calibration can be

additionally offered for this measuring station
