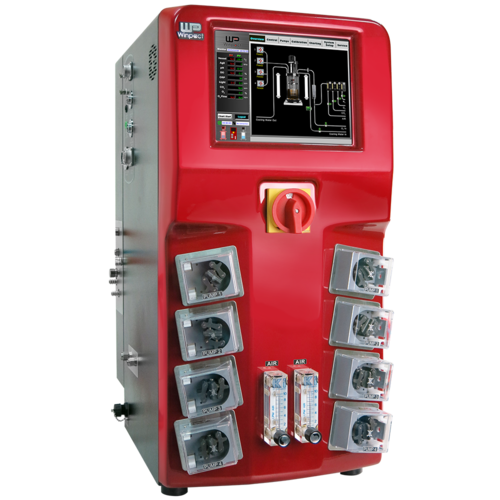

Major Science FS-05 Winpact平行发酵系统/发酵罐，FS-05系列 (500ml - 20L)

Utility Requirement

Power source 210-230V, 50-60Hz with electrical safety cutoff switch

Water source 0.4-1 bar (5.8-14.5 psi); water supplied to fermentors should be at least 15°C below the set operating temperature

Air source 0.5-2 bar, must be dry, oil-free and filtered.

Sterilization Autoclave; size of the autoclave's inner chamber must be able to accomodate vessel with condenser attached

Control unit

Control panel 10.4" Color touch-screen interface

Communication port Remote software control through Ethernet, up to 16 systems per PC

Data export through USB port

Analog AUX port for system extension

Program storage Up to 59,994 process programs

Log data storage Up to 100 process monitoring data files

Cabinet material ABS front panel and painted iron housing

Dimension Footprint: W x L = 15.75" x 21.61" (400 mm x 549 mm); Height: 29.14" (740 mm)

Rated voltage 220V~; 50/60 Hz, 10A, 2000W

Weight Approx. 114.6 lb (52 kg)

Aeration

Inlet gas flow-meter 0,0.1-1 LPM (500 ml); 0, 0.2-2.5 LPM (1 L); 0, 1-10 LPM (3, 5 L); 0, 2-25 LPM (10 L); 0, 6-50 LPM (15, 20 L)

Sparger L-shape (500ml, 1L); Ring sparger (3L and above); Micro-sparger (C type vessels);

Center-located sparger (solid state)

Baffle 316L stainless steel baffles

.5-3L vessel: fixed, unmovable

5L and above vessel: removable

Temperature

Heating 1. Thermostat system: built-in heat exchanger (550W heater, water circulation pump)

2. Dry heating system : external devices (heating blanket or heating base unit)

Cooling Built-in water module and external water circulator (optional)

Range

- FS-V-A/ B / SA05P series: 5℃ (41℉) above coolant up to 60℃ (140℉)

- FS-V-C series (Double Jacketed): 5℃ (41℉) above coolant up to 60℃ (140℉)

- FS-V-C series (Single Wall): without temp control

- FS-V-D series : 5℃ (41℉) above coolant up to 90℃ (194℉)

Probe Platinum RTD probe (PT-100), non autoclavable

Control mode Manual or programmable 15-step PID control

Agitation

Drive Removable top brushless motor

Speed range

a. For Pitched blade impeller: 30-300 rpm

b. For Rushton impeller: 30-1800 rpm(0.5, 1L); 30-1200 rpm(3, 5L); 30-1000 rpm(10L); 30-700 rpm(15, 20L)

c. For Broken type/Spiral type/Anchor type impellers (only for FS-V-SA05 vessel): 1 – 60 rpm

Resolution 1 rpm increment

Impeller

2 impellers for 0.5-1 L vessel and 0.5-5 L Double Jacketed Vessel

3 impellers for 3 L vessel and above; for 10 L Double Jacketed Vessel

Note: customized impellers are available upon ordering

Control mode Manual or programmable 15-step PID control with adjustable deadband

pH

Range 0 -14 (2-12 for maximum precision)

Resolution 0.01 pH

Probe Gel-filled electrode, autoclavable

Control mode Manual/acid start/progrmmable 15-step PID control

DO

Range 0-200%, Control range: 0-100%, adjustable

Resolution 0.1%

Probe Polarographic DO sensor; autoclavable

Control mode

• 2-stage DO cascade response

a. Increase or decrease agitation speed

b. Supply external oxygen source (oxygen enrichment module required, optional device)

c. Adjust DO level using gas mixing control (gas mixing station module required, optional device)

• Substrate feeding strategy

• DO Stat with smart feeding technology

ORP (optional)

Measurement range ± 2000 mV

Resolution 1 mV

Probe Gel-filled electrode: autoclavable

Foam / level Probe 316L stainless steel protector with insulated PTFE tube; autoclavable, adjustable sensitivity control

Control mode Foam: on/off switch

Level: on/off switch control with wet/dry probe set up

Peristaltic pump Pump number 4 built-in Watson Marlow pumps per vessel (total 8);

Total 4 external pumps expandable:

• 2 external pumps: MU-D series required (optional)

• 2 external pumps: 4-20mA or DC 0-10V analog input

** The minimum speed varies from 1-5 rpm depending on the medium viscosity. **

Motor type Precise stepping motor; minimum speed is 1 rpm

Speed range 0 - 65 rpm

Resolution 1 rpm

Control mode Manual or programmable 15-step feeding control; pump can be assigned for acid, base, antifoam and substrate

Exhaust

Device type: 316L stainless steel condenser
