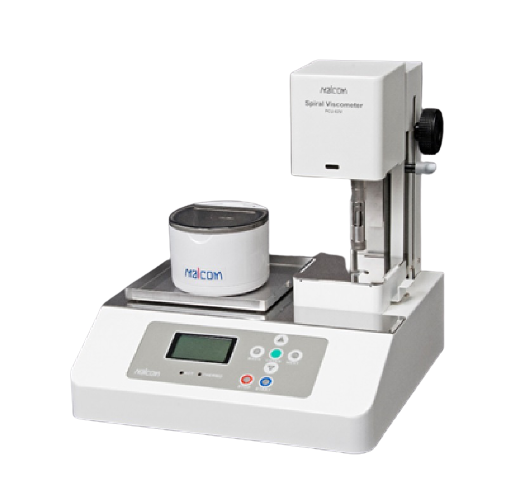

Malcom PCU-02V Spiral Viscometer (20~300Pa.s, 1~100RPM)

Measurement Range: 20~300Pa.s (20~50Pa.s 20rpm ・50~300Pa・s 10rpm)

Sample Amount: 0.2cc

Speed Range (N): 1~100RPM, FIX: 10rpm

Shear Rate (D): 0.6×Ns-1

Measurement Accuracy: ±5% of the indicated value

Speed Accuracy: ±2%

Temp. Control Range: 15～40℃ (when the room temp. is 25℃) Built-in thermostat

Temperature: 0~50℃ Resolution: 0.1℃ Accuracy: ±0.5℃

Sensor: SUS

Digital Display: Viscosity ・ Temp. ・ rpm

Digital Output: USB

Recorder Output: Viscosity: 1mV／Pa・s Temp: 10mV／℃

Calibration: JIS Z8809 Standard Fluid for Viscosity Calibration or Semi-standard calibration fluid KF96 (option)

Power Supply: AC100V～240V 50／60Hz 100VA

Outer Dimension: 315(D) x 335(W) x 376(H) mm

Weight: Approx. 8kg (including sensor part, approx. 1kg)
