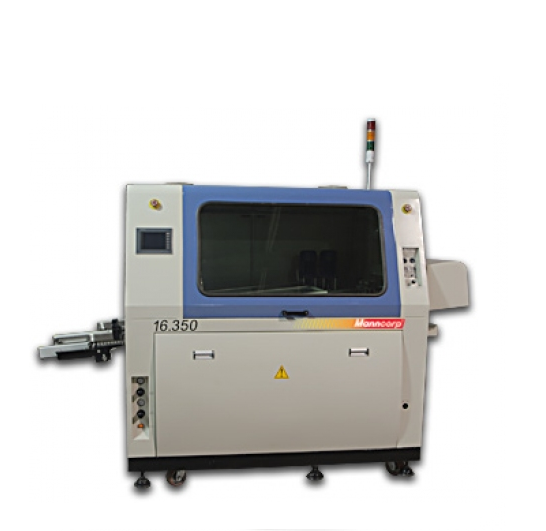

Manncorp 16,350 超紧凑型波峰焊机

Manufacturer: Manncorp - USA

Model: 16.350

Origin: China

Warranty: 12 months

Solder Capacity*: 250kg (Approximate weight for lead free solder)

Wave: Dual Wave

Dual Pot Capable: Yes - Option

Pb Free Capable: Yes

PreHeat Type: Convection

PreHeat Length: 600mm

System Control: Touch Screen Control

Fluxer: Spray Fluxer

Conveyor: Titanium V-Shaped Finger

Finger Cleaner: Yes

Max. Board Width: 350mm

Fume Extraction: Extractor Hood and Filter

Overall Dimensions: 2550 mm (L) ×1150 mm (W) ×1650 mm (H) (100" L x 45.2" W x 65" H)

Machine Weight: 360kg (794 lbs)

Power: 3Φ220V

Current: 50A

Frequency: 60Hz

Total Power: 18kw

Air Pressure: 4kfg/cm2

Rosin Atomization Device: Stepping Motor

Conveying Rate: 0.5~2.2M/min

Solder Wave Width: 360mm

Bare Board Dimensions: Max 350mm*350mm

Length of Soldered Pin: Max 10mm

Solder Furnace Temperature: Room Temperature~300°C

Exhaust Fan: 400W 1Φ220V

Solder Furnace Motor: 180W*2

Drive Motor: 40W 1Φ220V

Heating Pipe of Preheater: 1.5kw*6

Pawl Cleaning Pump: 12W

Forced Cooling Fan: 45W

Output: 1500Pcs /8H
