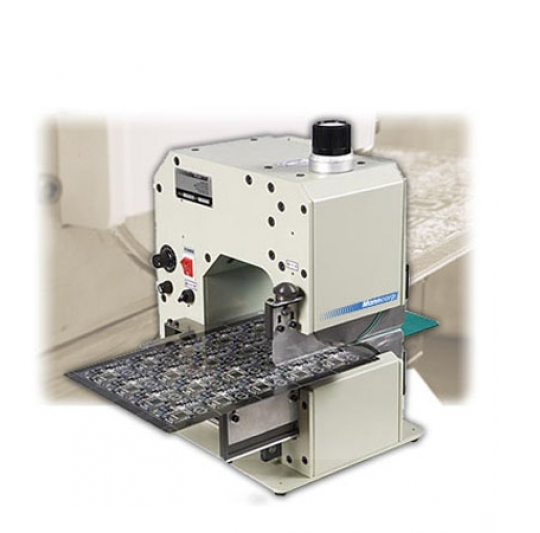

电动切板PCB机Manncorp 520N

Manufacturer: Manncorp - USA

Model: 520N

Origin: China

Warranty: 12 months


PCB Thickness: 0.5 mm to 2.0 mm

Maximum Depaneling Dimensions: 160 mm (6.3") wide; length unlimited

Upper Blade Mode: Motor-driven, adjustable speed

Scoring Angle: 30˚

Minimum Component Distance from V-Groove: 2 mm

Maximum Component Height: 35 mm (1.4")

Maximum Below-Board Lead Length: 35 mm (1.4")

Maximum Cutting Depth: 1/3 of PCB thickness

PCB Materials: Any except aluminum

Power: 110 V, 60 Hz 2A

Dimensions (L x W x H) 430 mm x 430 mm x 520 mm (17" x 17" x 20.5")

Net Weight: 36 Kg (79.4 lbs)
