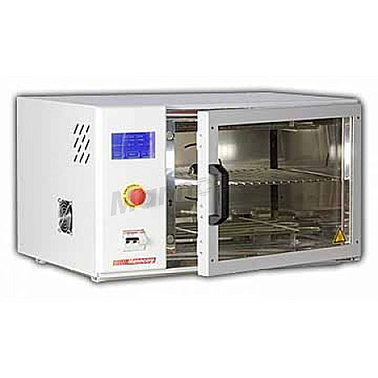

MANNCORP 850 台式回流炉

pplicable Solder Types

  Lead-Free and Leaded
PCB Size (Max.) 13" (330 mm) x 9.4" (240 mm)
Heating Method Forced Hot Air Convection;
Resistance Heaters
Min / Max Temperatures Preheat stage: 50°C/230°C
Reflow stage: 60°C/260°C
Temperature Control Method PID Control; ±1.5%
Warm-up Time 90°C/min
Programming LCD Touchscreen
Power 220 V, Single Phase, 50/60 Hz
1.5 KW; 4 KW (max.)
Air Supply 60 psi (4 bar)
Dimensions 27.4" L x 21.2" W x 16.1" H
(695 mm L x 540 mm W x 410 mm H)
Weight approx. 55 lbs. (25 Kg)
