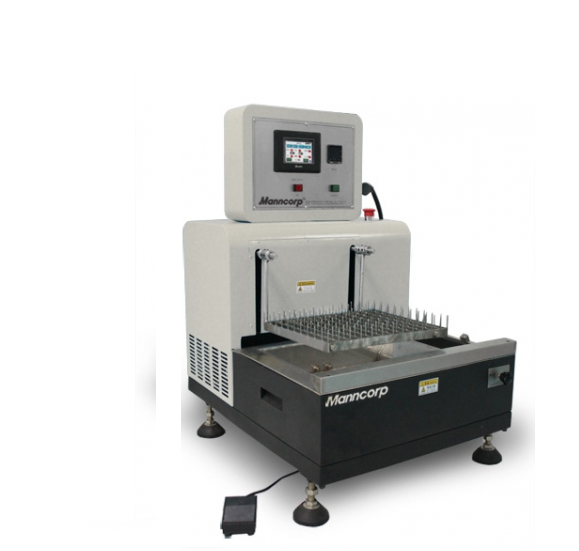

Manncorp Auto-Dip 3530-TS 焊接机
制造商: MANNCORP Model: Auto-Dip 3530-TS 来源: China 保障: 12 Month - 报价要求
- 联系
Manufacturer: Manncorp - USA
Model: Auto-Dip 3530-TS
Origin: China
Warranty: 12 months
PCB Size: Finger-Type PCB Holder:
250 mm x 220 mm (9.8" x 8.6") max.
50 mm x 50 mm (1.9" x 1.9") min.
Pin-Type PCB Holder:
350 mm x 300 mm (13.8" x 11.8") max.
60 mm x 60 mm (2.4" x 2.4") min.
Solder Pot Size: 400 mm W x 340 mm D x 80 mm H (15.75" x 13.4" x 3.15")
Solder Pot Capacity: approx. 70 Kg (154 lbs.) Lead-Free SAC; approx. 85 Kg (187 lbs.) SnPb
Solder Pot Temperature: recommended 285°C (545°F) Lead-Free SAC; recommended 265°C (50 °F) SnPb; 450°C (842°F) max.
Solder Dwell Time: 1-10 sec.
Preheat Time: 0-120 sec.
Overall Dimensions:
Base Unit: 600 mm W x 750 mm D x 460 mm H (23.6" x 29.5" x 18.1")
Touchscreen Console: 400 mm W x 120 mm D x 280 mm H (15.75" x 4.7" x 11")
Weight:
Base Unit: 78 Kg (172 lbs.)
Console: 5 Kg (11 lbs.)
Shipping Weight: Approx. 287 lbs. (130 kgs)
Power Requirements: 220V, Single Phase, 50/60 Hz, 20A, 3.6KW
