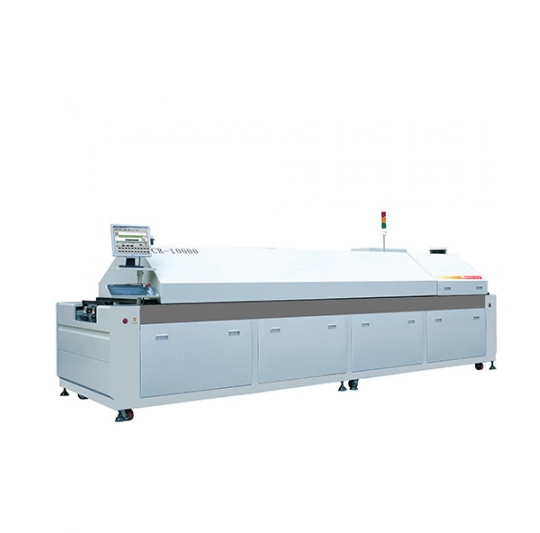

SMT 10回流焊炉Manncorp CR-10000
制造商: MANNCORP Model: CR-10000 来源: China 保障: 12 Month - 报价要求
- 联系
Manufacturer: Manncorp - USA
Model: CR-10000
Origin: China
Warranty: 12 months
General
Lead Free Compatible: Yes
Tin Lead (SnPb) Compatible: Yes
Nitrogen Atmosphere Compatible: Optional
Double-Sided Board Processing: Yes
CE Compliance: Yes
SMEMA Compatible: Optional
Board Handling
Mesh Belt Conveyor: Standard
Mesh Belt Width: 22.4" (570mm)
Process Clearance Above Mesh Belt: 2.5" (65mm)
Chain-Driven Pin Conveyor: Standard
Pin Conveyor Max. Width: 17.7" (450mm)
Pin Conveyor Min. Width: 1.97" (50mm)
Auto Adjust Pin Conveyor: Optional
Clearance Above Conveyor Pins: 1.18" (30mm)
Clearance Below Conveyor Pins: .98" (25mm)
Powered Center Support: Optional
Automatic Chain Lubrication: Yes
Conveyor Speed: 16-71"/min (400-1800mm/min)
Conveyor Height: 35.4 ±0.8" (900mm ±20mm)
Conveyor Direction: Left to Right
Component Max. Height: 30mm upper, 25mm lower
Heating
Forced Hot Air Convection: Yes
Number of Independently Controlled Heating Zones: 20 total
10 upper, 10 lower
Total Heated Length: 106" (2700 mm)
Number of Oven Convection Motors: 20 Power: 120W x 20
Delta T: ±2° C
Temperature Controls
PID (Proportional-Integral-Differential): Yes
Temperature Control Accuracy: ±1° C
PCB Temperature Tolerance: ±2° C
Temperature Range: Ambient -350° C
Ramping Time (from cold start): Approximately 25-30 min
Profiling / Thermocouple Channels: 3
Cooling
Standard Cooling Method: Air
Internal Chilled Water Cooling: Optional
Number of Cooling Zones: 1 (2 with water cooling)
Cooling Tunnel Length: 24.4" (620 mm)
Operating System and User Interface
Windows Compatible PC: Yes
Touch Screen LCD: No
Language: English
On-Screen Thermal Profiling and Parameter Setting: Yes
Print Capability: Yes
Data Logging & Event Recording: Yes
Alarms: Audible, Visual (Light Tower) and On-Screen Display
Dimensions & Physical Characteristics
Length: 217" (5500 mm)
Width: 59.4" (1510 mm)
Height: 61" (1550 mm)
Net Weight: 4740 lbs. (2150 kg)
Utilities
Power Supply: 220 VAC 3-Phase, 122A
Number of Exhaust Vents: 3
Exhaust Venting Volume: 400CFM per port
Conveyor & PC Power Supply: Uninterruptible Power Supply for Conveyor & PC
Hood Opening Mechanism: Automatic Raise and Lower
