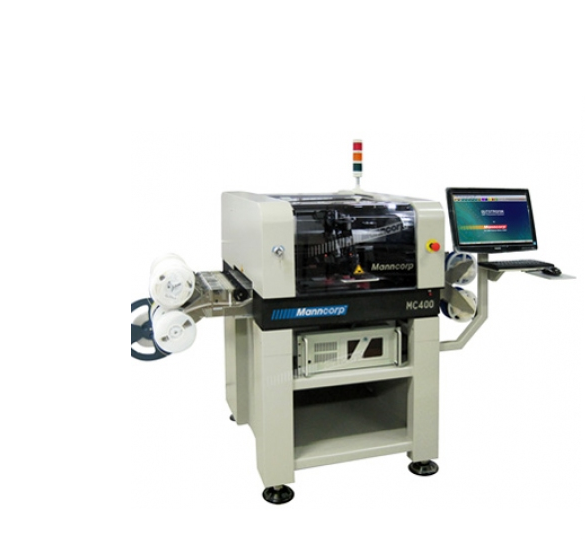

Manncorp MC-400 全系列回流焊机

Manufacturer: Manncorp - US

Model: MC-400

Origin: China

Warranty: 12 months

Placement Specifications

Number of Placement Heads: 1

Placement Rate (IPC-9850)*: 2,500 CPH

Placement Rate (Max.): 3,000 CPH

Placement Accuracy: ±0.05 (0.002")

Minimum Component Size: 0201

Maximum Component Size: 100 mm x 150 mm (3.94" x 5.9")

Minimum Component Lead Pitch: 15 mil

BGA/CSP Placement Capability: Yes - Standard

Alignment Method: Full-Vision Alignment System

Pick Up Specifications

Tool Changer: Included

Number of Tools: 15

Accepts Additional Tool Changers: Yes

Integral Vacuum: Yes

PCB Specifications

PCB Loading Method: Manual

Max. Placement Area: 415 mm x 320 mm (16.3" x 12.5")

Fiducial Recognition/ Coordinate Correction: Yes

Bad Mark Detection: Yes

Feeder Capacity

Maximum Number of Feeder Ports: 64

Maximum Number of Waffle Trays: 3 (Waffle tray reduce placement area)


Operating System: Windows® Based

PC, Keyboard, Mouse: Yes

Monitor Flat LCD

Teaching Camera: Yes

Numeric Data Entry: Yes

CAD Download: Yes

Step and Repeat for Matrix Boards: Yes

Bar Code Reader for Feeders & Packaging: Yes

MIS and Optimization Functions: Yes

Off-Line Programming: Yes

Dispenser Specifications

Dispensing Head: Optional

Dispense Method: Time/Pressure

Dot Size / Placement Speed: Down to 0.5 mm / Up to 6,000 dots./hr

Mechanical Specifications

X-Y Axis Drive Mechanism: Belt

X-Y Axis Drive Motors: AC Servo

X-Y Axis Encoding: Linear

X-Y Axis Resolution: 0.005 mm (0.0002")

X-Y Axis Repeatability: ±0.01 (10 µm)

Z Axis Drive Motor: DC Servo

Z Axis Encoding: Rotary

Z Axis Resolution: 0.01 mm (0.0004")

Θ Axis Drive Motor: DC Servo

Θ Axis Encoding: Rotary

Θ Axis Resolution: 0.045°

Θ Axis Range of Motion: 0.09˚/step°

Physical Specifications

Overall Dimensions(Approx. L x W x H): 952 mm L x 977.9 mm W x 1447.8 mm H (37 1/2" x 38 1/2" x 57")

Approximate Net Weight: 408 Kg (900 lbs.) With Stand

Facility Requirements

Standard Voltage: 220 VAC, 50/60 Hz

Air Pressure: 75 psi, 5 bar

Remote Diagnostics: Ethernet

Warranty (Major Components): 1 Year
