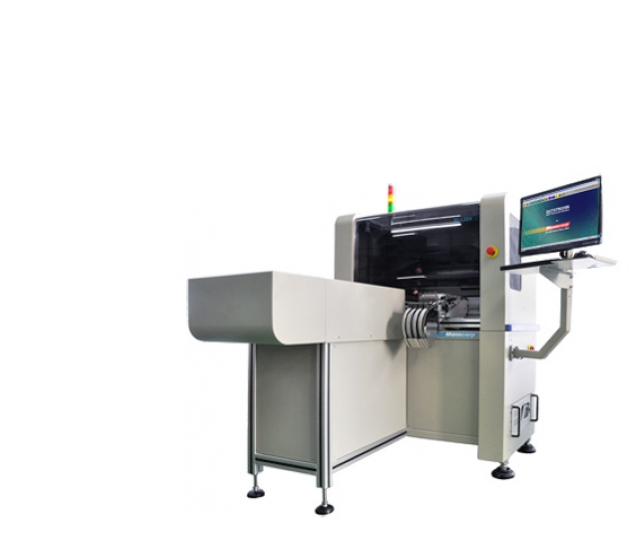

LED Manncorp MC-LEDV4-1800拣选和上胶机

  • 制造商: MANNCORP
    Model: MC-LEDV4-1800
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267


Manufacturer: Manncorp - US

Model: MC-LEDV4-1800

Origin: China

Warranty: 12 months

Placement Specifications

Number of Placement Heads: 4

Placement Rate (IPC-9850)*: 15,000 CPH

Placement Accuracy: 30 µm, 3 Sigma

Minimum LED Size: 0.6 mm × 0.3 mm (0.024 in × 0.012 in)

Maximum LED Size: 8 mm x 8 mm x 5 mm (0.31" x 0.31" x 0.20") with on-the-fly vision

Capability for Other SMDs: Same maximum and minimum component size as LEDs

Pick Up Specifications

Tool Changer: yes

Number of Tools: 6

Accepts Additional Tool Changers: Yes

Integral Vacuum: Yes

Board Handling Specifications

Board Handling Method: Magnetic fixture worktable (standard) or inline conveyor (optional)

Max. Board Length: 70.8" (1800 mm) Full length assembled in a single pass

Max. Board Width: 11.8" (300 mm); 10.2" (260 mm) with inline conveyor option

Board Thickness: 0.008" to 0.12" (0.2 mm to 3.0 mm); 0.008" to 0.197" (0.2 mm to 5.0 mm) with inline conveyor option

Fiducial Recognition/ Coordinate Correction: Yes

Bad Mark Detection: Yes

Feeder Capacity

Maximum Number of Feeder Ports: 16

Tape Feeder Sizes: 8, 12, 16 and 24 mm


Operating System: Windows® 7

PC, Keyboard, Mouse: Yes

Monitor Flat LCD

Teaching Camera: Yes

Numeric Data Entry: Yes

CAD Download: Yes

Step and Repeat for Matrix Boards: Yes

Bar Code Reader for Feeders & Packaging: Yes

Optimization Functions: Yes

Off-Line Programming: Yes

Mechanical Specifications

X Axis Drive Mechanism: Ball Screw

X Axis Encoding: Rotary

Y Axis Drive Mechanism: Belt with stepping motor

Y Axis Encoding: Rotary

X-Y Axis Resolution: 0.02 mm (0.0008")

Z Axis Resolution: 0.02 mm (0.0008")

Θ Axis Resolution: 0.18°

Θ Axis Range of Motion: 360°

Physical Specifications

Overall Dimensions (Approx. L x W x H): 43.3" x 58" x 58.6" (1100 mm x 1473 mm x 1489 mm)

Approximate Net Weight: 450 Kg (992 lbs.)

Facility Requirements

Standard Voltage: 220 VAC, Single Phase

Air Pressure: 80 psi, 4 CFM

Service and Support

Remote Diagnostics: Ethernet

Warranty (Major Components): 1 Year
