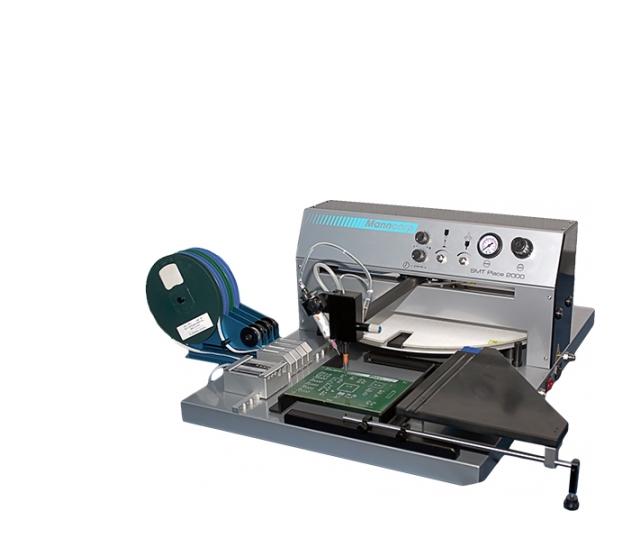

Manncorp SMT Place 2000手动控制拾取和粘合机

  • 制造商: MANNCORP
    Model: SMT Place 2000
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Manufacturer: Manncorp - US

Model: SMT Place 2000

Origin: China

Warranty: 12 months


Placement Accuracy: Manual

Placement Rate: up to 800pph

Components: Operator Dependant

Component Height: top max 0.79" (20mm), bottom 0.98" (25mm)

Board Size: max 11" x 8.7" (280 x 220mm)

Board Thickness: 0.02" (0.5mm), max 0.12" (3.0mm)

Maximum Warpage: 0.04" (1mm) up, 0.04" (1mm) down

Loose Parts: ESD-safe 45-bin rotating loose parts carousel with cover included

Taped Parts: Built-in feeder base holds up to 12 tape feeders or a combination of tape feeders and tape strip feeders. Tape strip feeders hold 8 mm, 12 mm, and 16 mm strips.

Power Requirement: 110Vac, 50-60Hz, 70W

Air Requirement: 85psi

Dimensions: 35.4" x 30" x 11.8" (900 x 760 x 300mm)

Weight: 55lbs (25kg) without feeders
