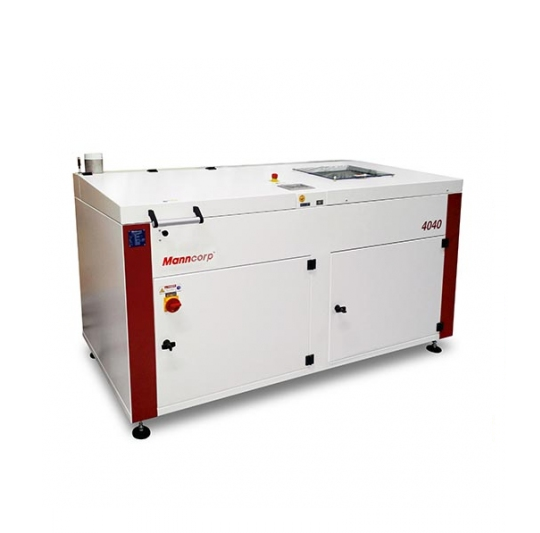

Manncorp蒸汽焊接系统VP4040

  • 制造商: MANNCORP
    Model: VP4040
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Manufacturer: Manncorp - USA

Model: VP4040

Origin: China

Warranty: 12 months


Max. PCB Size: 460 x 410 x 80 mm (18.1" x 16.1" x 3.2")

Max. Board Weight: 5 Kg (11 lbs) total per load

Fluid Capacity: 27 Kg (59.5 lbs)

Avg. Fluid Consumption: 1.5 – 2 g/cycle

Cooling Water Flow Requirement: 2.5 – 4.0 bar (35 – 60 psi). Tap water or recirculating chiller

Startup Time: 25 min

Avg. Cycle Time: 3 – 5 min (profile dependent)

Voltage Requirements: 208V, three-phase, 50/60 Hz

Power Consumption: 2.8 KW (Soldering); 1.8 KW (Standby Mode)

Dimensions (L x W x H): 2000 x 800 x 1260 mm (78.75" x 31.5" x 49.6")

Net Weight: 370 Kg (816 lbs)
