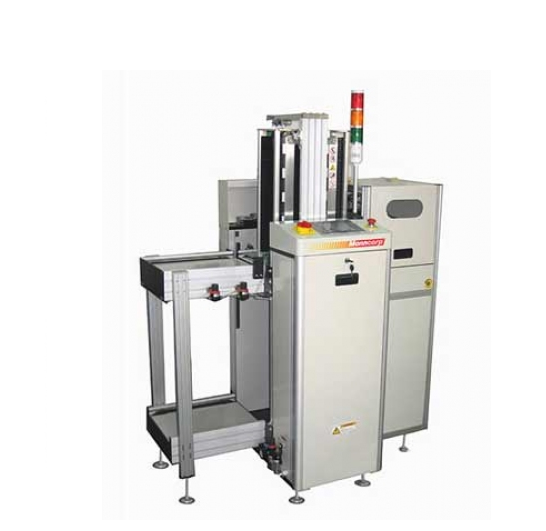

PCB堆垛机/杂志Manncorp XL-390W-ST

Manufacturer: Manncorp - USA

Model: XL-390W-ST

Origin: China

Warranty: 12 months


PCB Size: 50 mm L x 50 mm W to 535 mm L x 390 mm W (1.97" L x 1.97" W to 21.06" L x 36.61" W)

PCB Stack Capacity: 400 pcs. (0.6 mm thickness) or 240 mm (9.45") stack height

PCB Thickness: 0.4 mm min. (0.016" min.); 2.5 mm max. (0.098" max.)

Magazine Size: 535 mm L x 460 mm W x 570 mm H (21.06" L x 18.11" W x 22.44" H)

Selectable Pitch: 10, 20, 30, or 40 mm

Conveyor Direction: Left to right (standard) or right to left (optional) operation

Conveyor: 3 mm Diameter Edge Belt

Air Supply Pressure: 5-6 Kg/cm2 (70-85 psi)

Air Consumption: 10 l/min (.35 CFM)

Voltage:  110 VAC, 50/60 Hz

Power: 300 VA max.

Machine Dimensions: 2068 mm L x 1018.5 mm W x 1290 mm H (81.5” L x 40” W x 50.8” H)

Net Weight: 200 Kg (440 lbs.)

Shipping Weight: 245 Kg (540 lbs.)

Details
