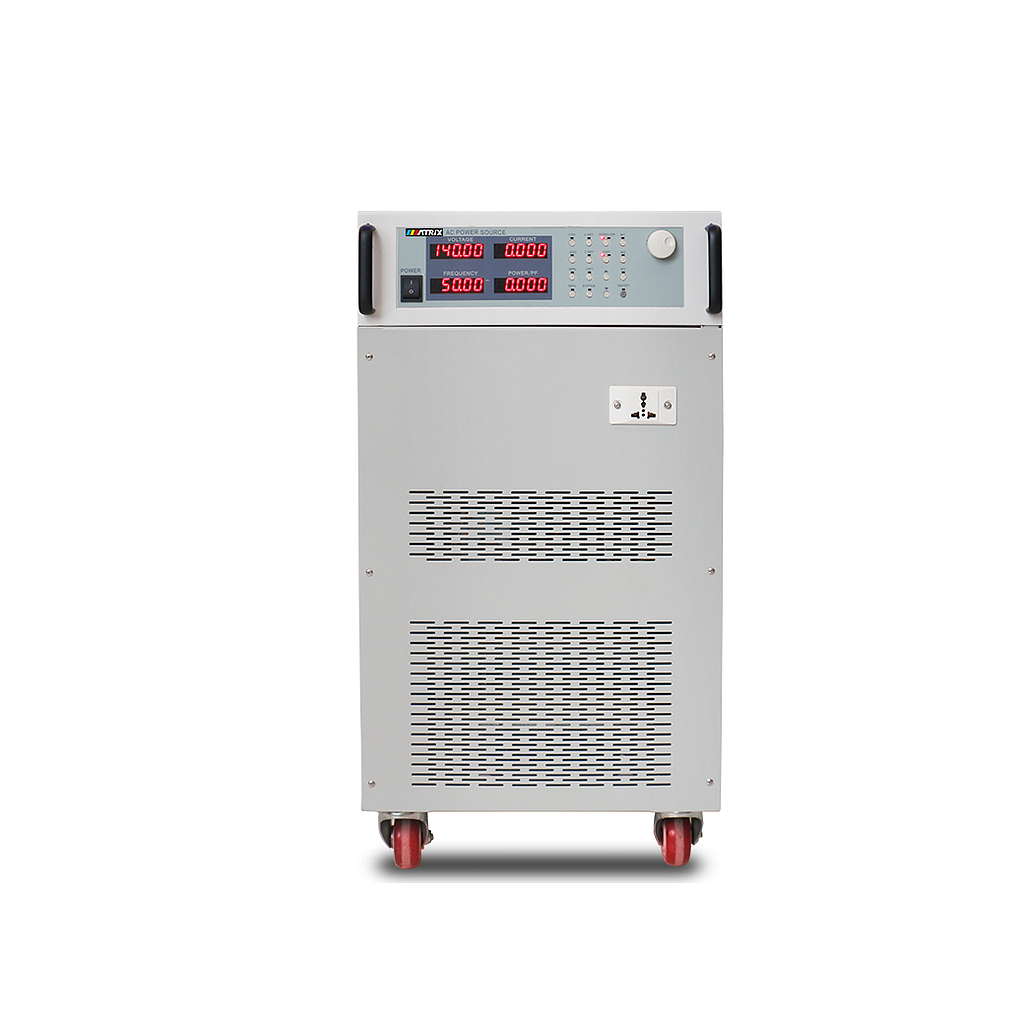

MATRIX APS-5020A 大功率可编程交流电源 (20KVA, single phase)

Output capacity: 20KVA

Operating mode: SPWM

Input power: 3φ4W 220V ± 10%

Output frequency: 45~200Hz (40~500Hz10Hz~1000Hz Need to be customized), 0.01Step

Frequency stability: 0.01%

The output voltage: 0~150VAC / 0~300VAC AUTO

Output current: 168A / 84A

Load regulation: 1%

Total waveform distortion: 2% (pure resistive load)

Display: Vrms, Arms, Fre, Wattage, PF

protective device: Overvoltage, overcurrent, overload, short circuit

Operating environment: 0~40°C, 20~80% RH

Size: 430*700*550mm

Weight: 150
