Meinsberg PLF40/Set 电导率仪

  • 制造商: Meinsberg
    Model: PLF40/Set
    来源: Germany
    保障: 12 month
    • 报价要求 报价要求
  • Price (exclude tax) 17,018,107 VND
    Price (include tax) 18,719,918 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Measurement value: 0...200.0 µS/cm; 0...2000 µS/cm; 0...20.00 mS/cm; 0...500.0 mS/cm; 0...20 µS/cm ZK 0,1; 0...20 µS/cm ZK 0,01; 0...200 µS/cm ZK 0,1; automatic measuring range switching

TDS: 0...200 mg/l; 0...2000 mg/l; 0...20 g/l; 0...500 g/l

Salinität: 0...70 g/kg; Temperature: -10.0...100.0 °C

Resolution: 0.1 µS; 1 µS; 0.01 mS; 0.1 mS; 0.1 °C

Temp. compensation: automatic with NTC or fixed temperature

Accuracy: ±1 digit, ± 0.5 % of measuring range, T [°C] ± 0.1 (5…50 °C)

Connections: 8-pin flange plug, 4-pin interface USB port

- Calibration:

  + Direct input (cell constant, temperature compensation, cable offset, TDS factor)

  + Temperature offset

  + One-point

  + Automatic

- Housing:

  + Material: Aluminum desk housing IP 40/DIN EN 60529

  + Dimensions:  145 x 185 x 55 mm (W x H x D)

  + Weight:  approx. 750 g (incl. power supply and stand)

Display: graphic LCD display, 128 x 64 pixels, backlight

USB Interface: USB with „Interface HMG USB”, galvanically isolated

Data logger: stores up to 4,000 data sets (date, time, main measured value, secondary measured value, measuring temperature)

Power supply:

By external power supply 5 V DC of 100 - 240 V; 50/60 Hz; power input: 5 Watt

 Use only the power supply (Mo. VER05US050-JA; input 100-240 V~; 50/60 Hz; 0.18 A; output 5 V DC; 1 A max.; class II)!

Includes :

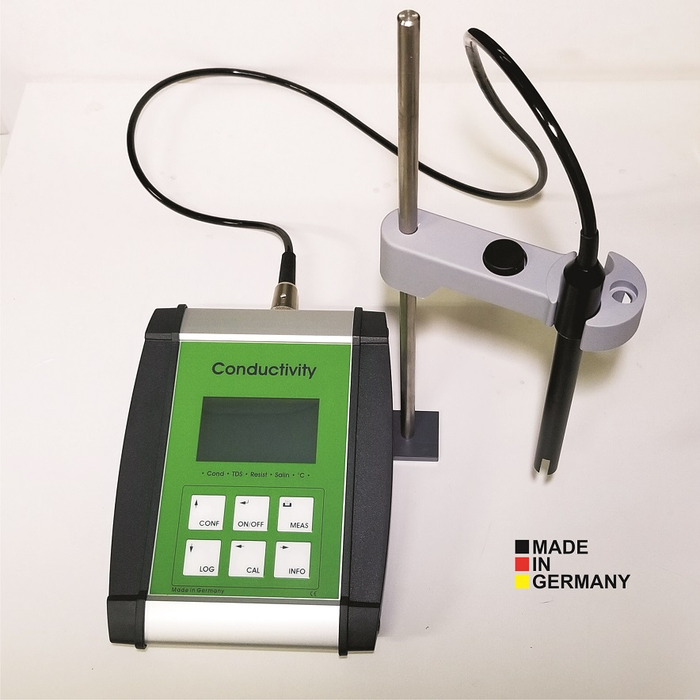

 PLF40/Set  Lab conductivity meter

  Power supply, Tripod

  Conductivity Cell LTC0,35/23-K010-U

  50 ml calibration solution 0.1 N KCl (12.9 mS/cm at 25 °C)

Details

Datasheet


Manual
